Degson circular connectors (M5, M8, M12, M23, 7/8")
982 part numbers in 12 series. Pick a series to see every part number with its description and a quote button.
Series
- Molded cable connectors242 parts
- Solder-cup receptacles228 parts
- Shielded molded cable connectors171 parts
- Panel receptacles, front mount134 parts
- Field-wireable connectors101 parts
- Molded cable connectors (single-ended)72 parts
- Panel receptacles, rear mount14 parts
- Servo / distributor connector6 parts
- Other5 parts
- M12 connector with LED3 parts
- M23 field-assembly connector3 parts
- M8, Male3 parts
Servo / distributor connector

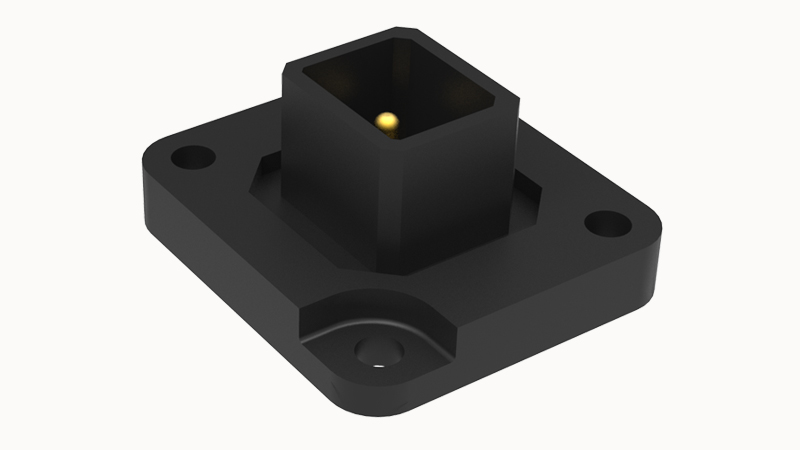

DGFA2S-A1-00A(H)Description DGFA 2-pin servo connector base receptacle (male/female)

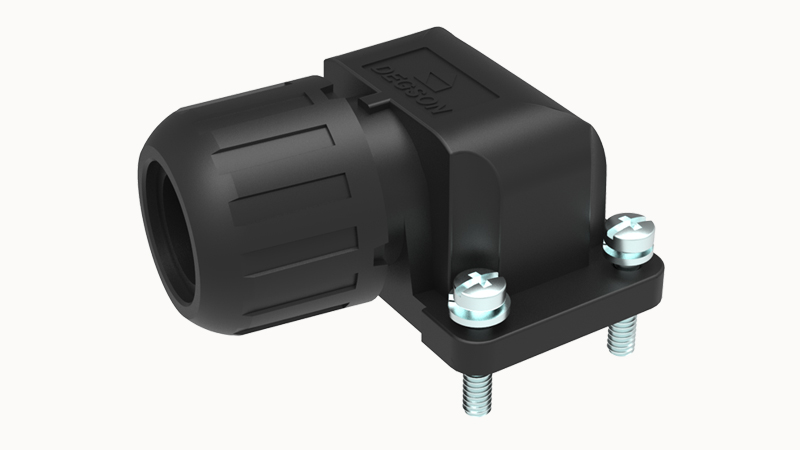

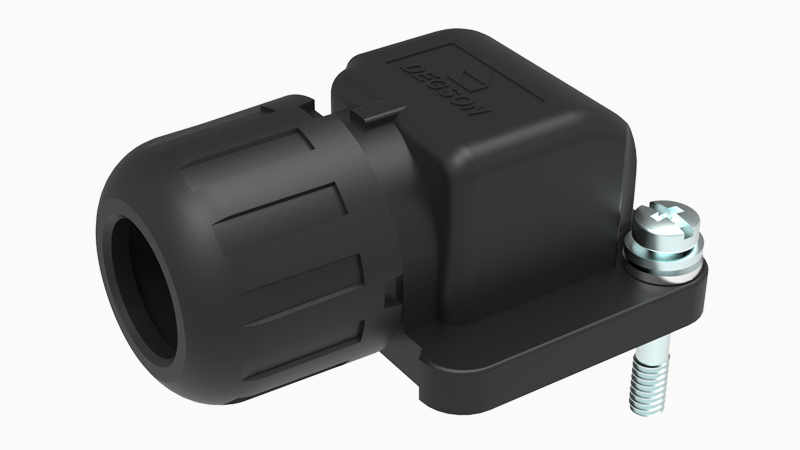

DGFA2S-B1-00A(H)Description DGFA 2-pin servo connector plug

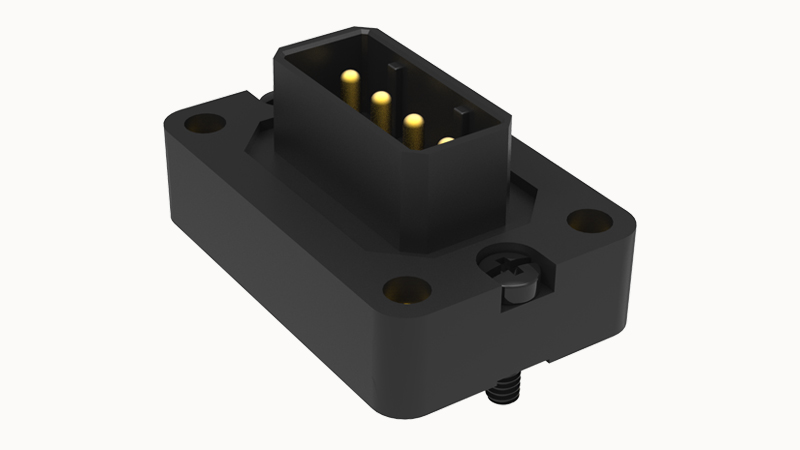

DGFA4S-A2-00A(H)Description DGFA 4-pin servo connector base receptacle (brake Brake)
DGFA4S-B1-00A(H)Description DGFA 4-pin servo connector plug (power Brake+Power)

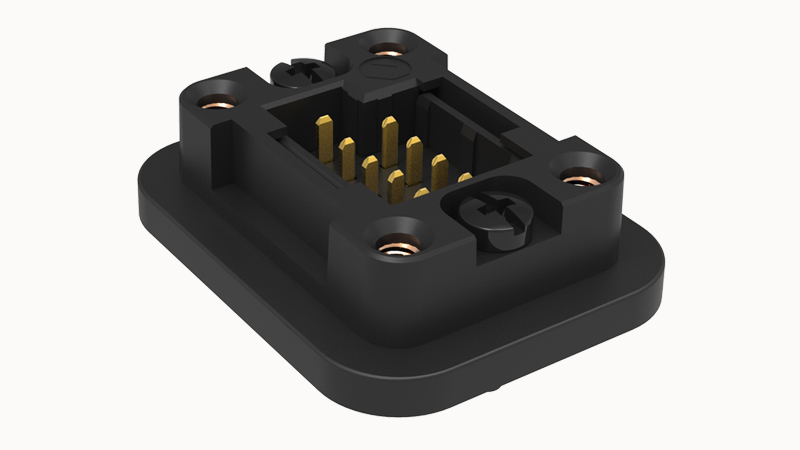

DGFA9S-A1-00A(H)Description DGFA 9-pin servo connector base receptacle (encoder Encoder)

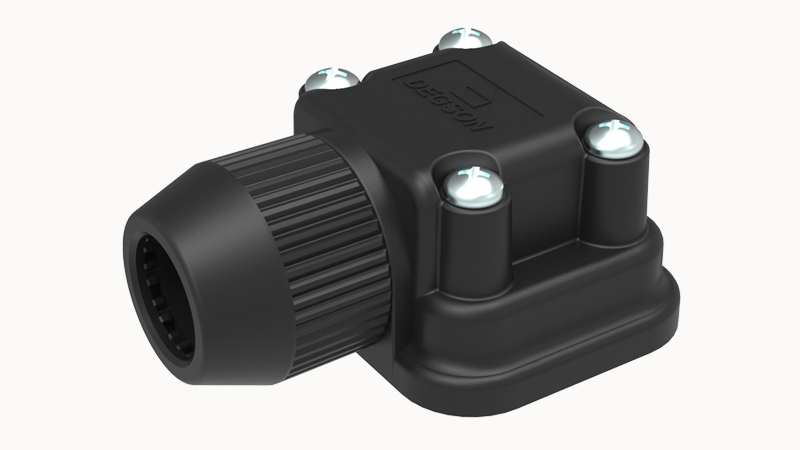

DGFA9S-B1-00A(H)Description DGFA 9-pin servo connector plug (encoder)
Other
PB-M12A-08P-FF-SL8001-00AHPB-M12A-08P-FF-SR8001-00AHPB-M12A-08P-MM-SL8001-00AHPB-M12A-08P-MM-SR8001-00AHSS-L-RJ45-RJ45-00Z(H)Description Degson RJ45 Ethernet Coupler/Receptacle, 8-Pole
M12 connector with LED
PL-M12A-04P-FF-SL8A01-00A(H)Description M12x1 Female molded cable connector, single-ended, unshielded, straight, LED(PVC 1m)PL-M12A-04P-FF-SL8B01-00A(H)Description M12x1 Female molded cable connector, single-ended, unshielded, straight, LED(PUR 1m)PL-M12A-04P-FF-SR8B01-00A(H)Description M12x1 Female molded cable connector, single-ended, unshielded, right-angle, LED(PUR 1m)
M23 field-assembly connector

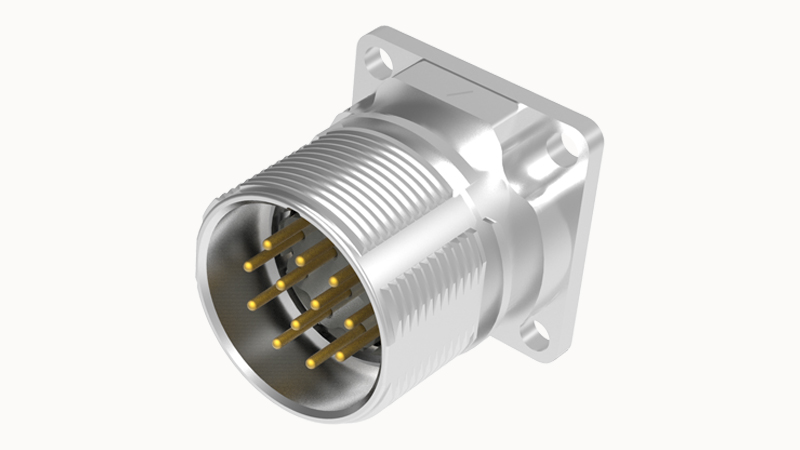

SCSH-M23R-12P-MM-SR7000-00A(H)Description M23x1 male field-wireable receptacle, shielded, crimp type, right-angle receptacle (12Pin)
SCSH-M23R-12P-MM-SS7000-00A(H)Description M23x1 male field-wireable receptacle, shielded, crimp type, straight receptacle (12Pin)
SCSH-M23R-17P-MM-SS7000-00A(H)Description M23x1 male field-wireable receptacle, shielded, crimp type, straight receptacle (17Pin)
M8, Male

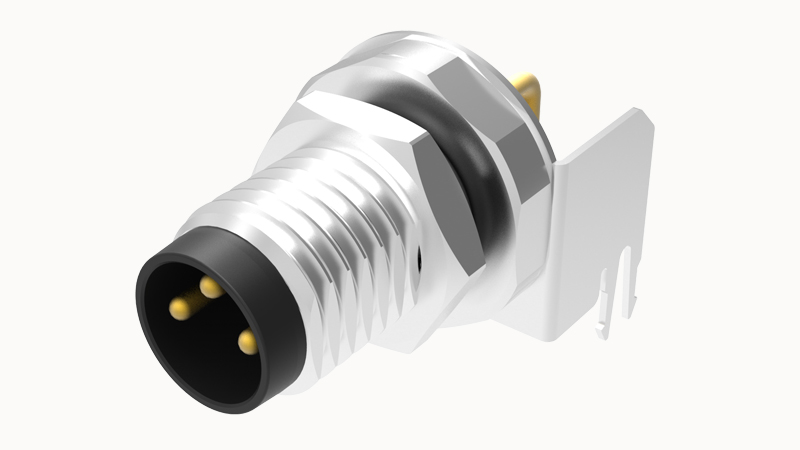

SRSH-M8A-03P-MM-SF7003-00A(H)Description M8x1 male panel-mount receptacle, rear-mount, shielded, PCB solder (03/04/05/06Pin)
SRSH-M8A-04P-MM-SF7003-00A(H)Description M8x1 male panel-mount receptacle, rear-mount, shielded, PCB solder (03/04/05/06Pin)SRSH-M8B-05P-MM-SF7003-00A(H)Description M8x1 male panel-mount receptacle, rear-mount, shielded, PCB solder (03/04/05/06Pin)
Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
