Degson Other

17 Degson part numbers. Copy the one you need or request a quote.

Filter these 17 parts

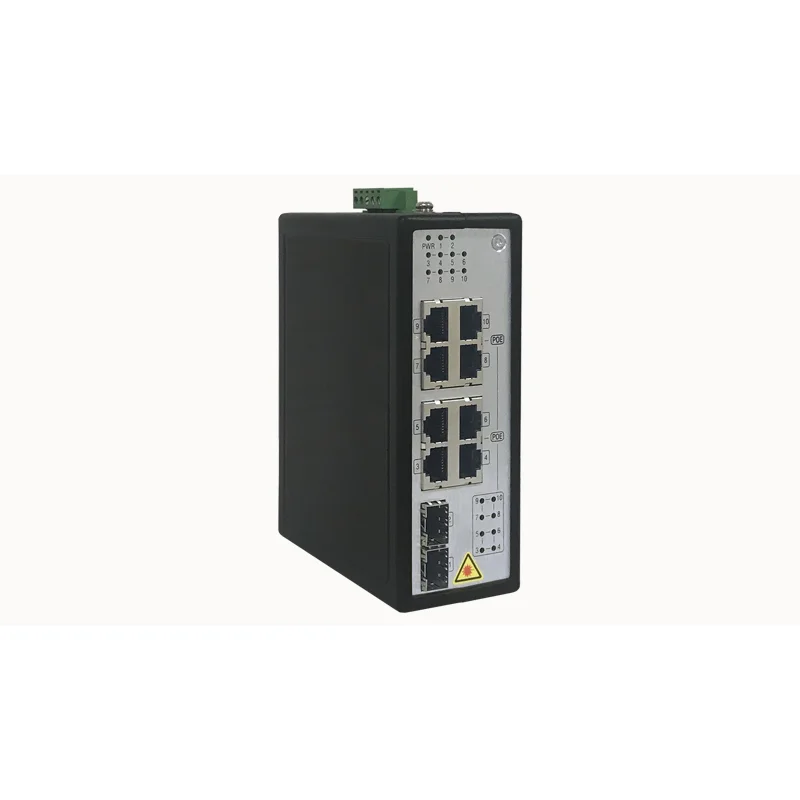

DSW-A10K2080P
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged PoE Ethernet switch, 2 x BaseX SFP ports, 8 x BaseT ports
- Ports: 2 x BaseX SFP ports, 8 x BaseT ports
- Bandwidth: 1000M
- PoE: IEEE 802.3af/at, up to 30 W per PoE port
- Backplane bandwidth: 20 Gbps
- Input voltage: 48 to 57 VDC, redundant dual inputs
- Installation: DIN rail, wall mounting
- Dimensions (W x H x D): 52 x 140 x 110 mm
- Weight: 0.7 kg
DSW-A16K000G
Request a quote View on GrossAutomation.com
Description Unmanaged Ethernet switch, 16 x BaseT ports
- Ports: 16 x BaseT ports
- Bandwidth: 100M
- Processing type: Store-and-forward
- DIP switch functions: QoS, BSP, power alarm, port alarm, alarm buzzer
- Input voltage: 12/24/48 VDC, 24 VAC, redundant dual input
- Power consumption: <10 W
- Protection grade: IP30
- Dimensions (W x H x D): 52 x 140 x 110 mm

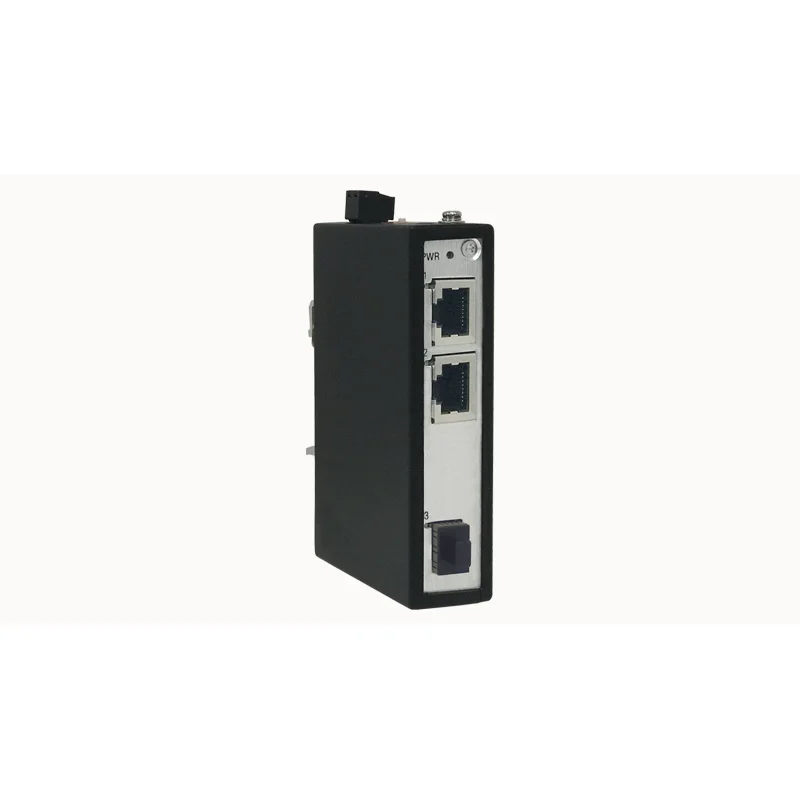

DSW-A3K1020
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 1 x BaseX SFP port, 2 x BaseT ports
- Ports: 1 x BaseX SFP port, 2 x BaseT ports
- Bandwidth: 1000M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 24 x 100 x 61.8 mm
- Power consumption: 5 W max

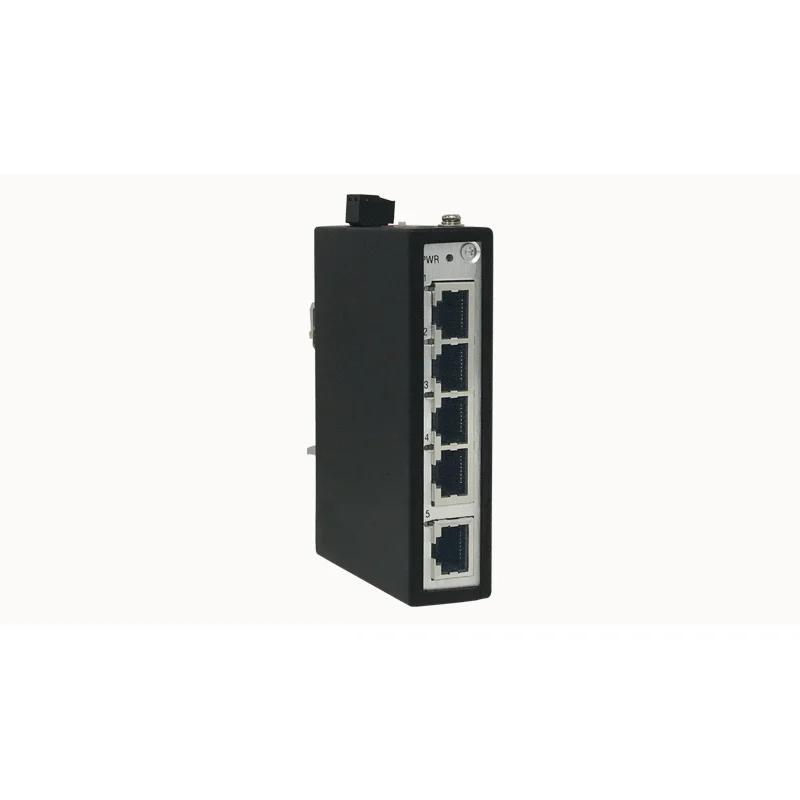

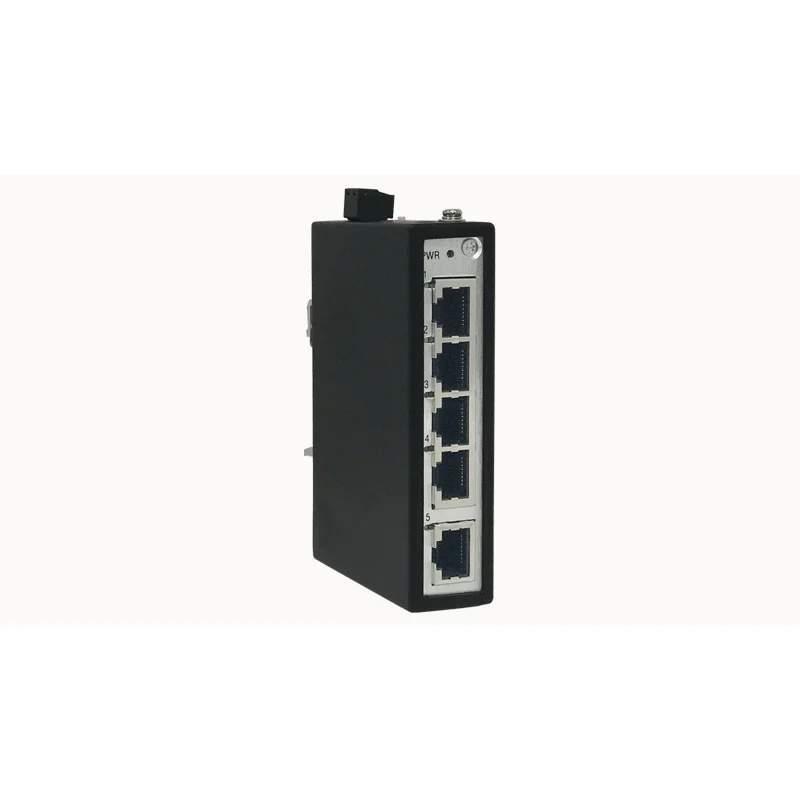

DSW-A5K0005
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 5 x BaseT ports
- Ports: 5 x BaseT ports
- Bandwidth: 100M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 24 x 100 x 61.8 mm
- Power consumption: 5 W max
DSW-A5K0050
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 5 x BaseT ports
- Ports: 5 x BaseT ports
- Bandwidth: 1000M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 24 x 100 x 61.8 mm
- Power consumption: 5 W max

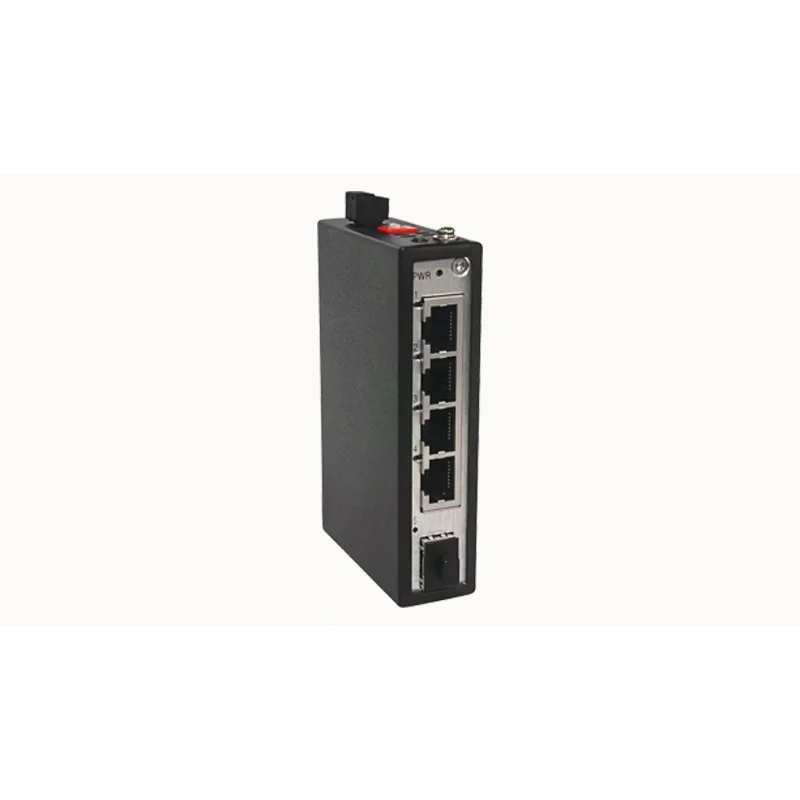

DSW-A5K0104
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 1 x BaseX SFP port, 4 x BaseT ports
- Ports: 1 x BaseX SFP port, 4 x BaseT ports
- Bandwidth: 100M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 24 x 100 x 61.8 mm
- Power consumption: 5 W max

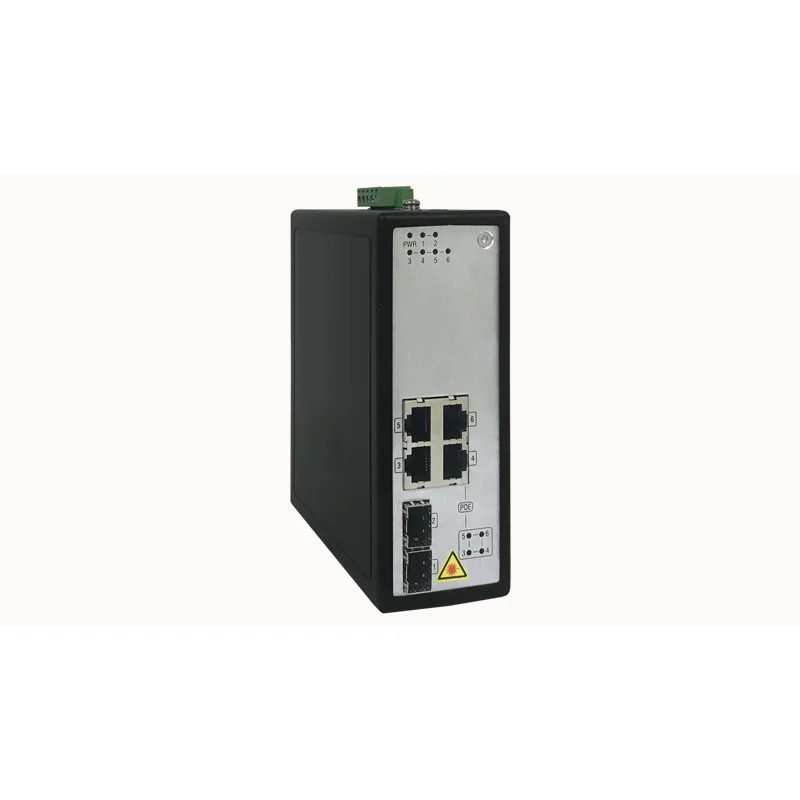

DSW-A6K2040P
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged PoE Ethernet switch, 2 x BaseX SFP ports, 4 x BaseT ports
- Ports: 2 x BaseX SFP ports, 4 x BaseT ports
- Bandwidth: 1000M
- PoE: IEEE 802.3af/at, up to 30 W per PoE port
- Backplane bandwidth: 20 Gbps
- Input voltage: 48 to 57 VDC, redundant dual inputs
- Installation: DIN rail, wall mounting
- Dimensions (W x H x D): 52 x 140 x 110 mm
- Weight: 0.7 kg

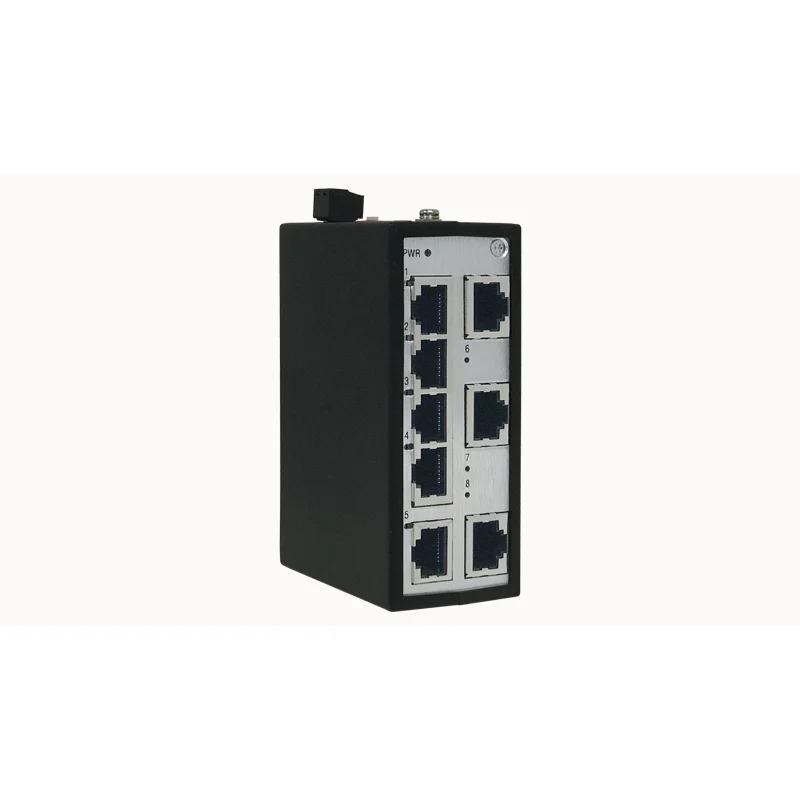

DSW-A8K0008
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 8 x BaseT ports
- Ports: 8 x BaseT ports
- Bandwidth: 100M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 40 x 100 x 61.8 mm
- Power consumption: 5 W max
DSW-A8K0080
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 8 x BaseT ports
- Ports: 8 x BaseT ports
- Bandwidth: 1000M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 40 x 100 x 61.8 mm
- Power consumption: 5 W max

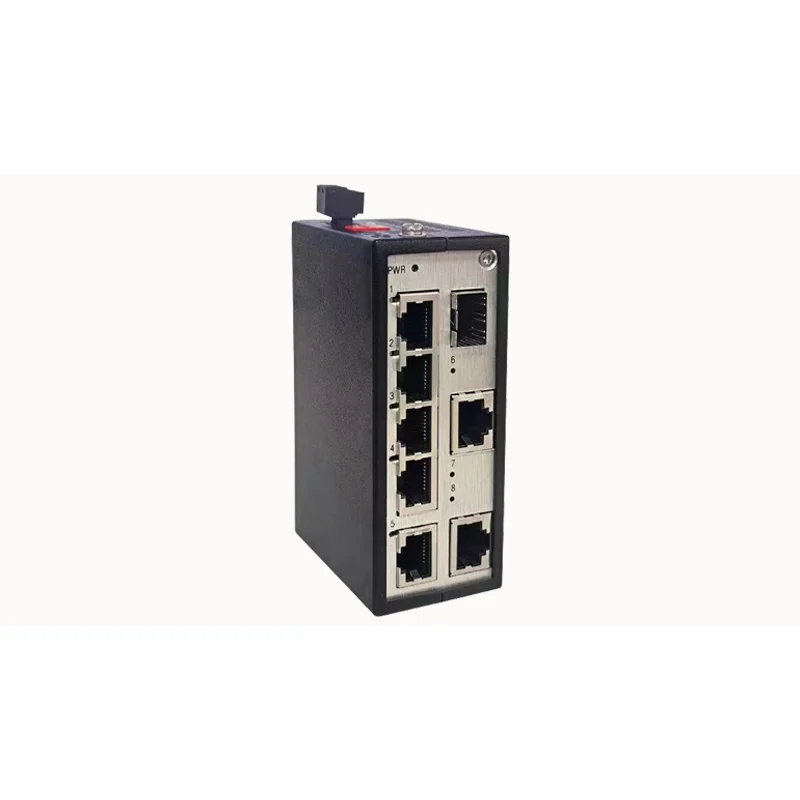

DSW-A8K0107
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 1 x BaseX SFP port, 7 x BaseT ports
- Ports: 1 x BaseX SFP port, 7 x BaseT ports
- Bandwidth: 100M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 40 x 100 x 61.8 mm
- Power consumption: 5 W max

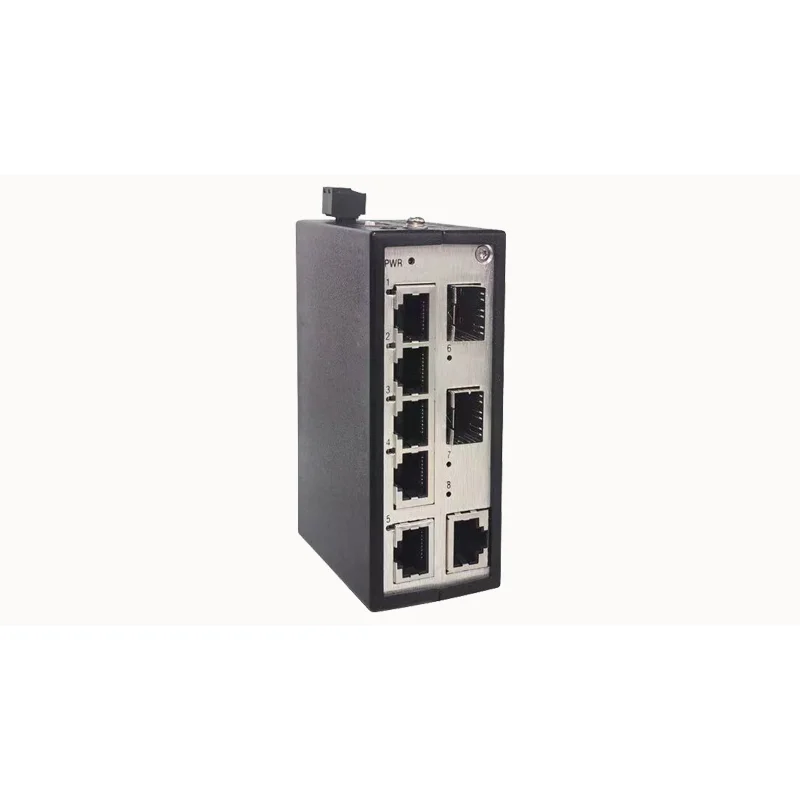

DSW-A8K0206
Request a quote View on GrossAutomation.com Drawing
Description Unmanaged Ethernet switch, 2 x BaseX SFP ports, 6 x BaseT ports
- Ports: 2 x BaseX SFP ports, 6 x BaseT ports
- Bandwidth: 100M
- Processing type: Store-and-forward
- DIP switch functions: QoS, broadcast storm protection (BSP)
- Input voltage: 12/24/48 VDC, 24 VAC
- Installation: DIN rail
- Dimensions (W x H x D): 40 x 100 x 61.8 mm
- Power consumption: 5 W max

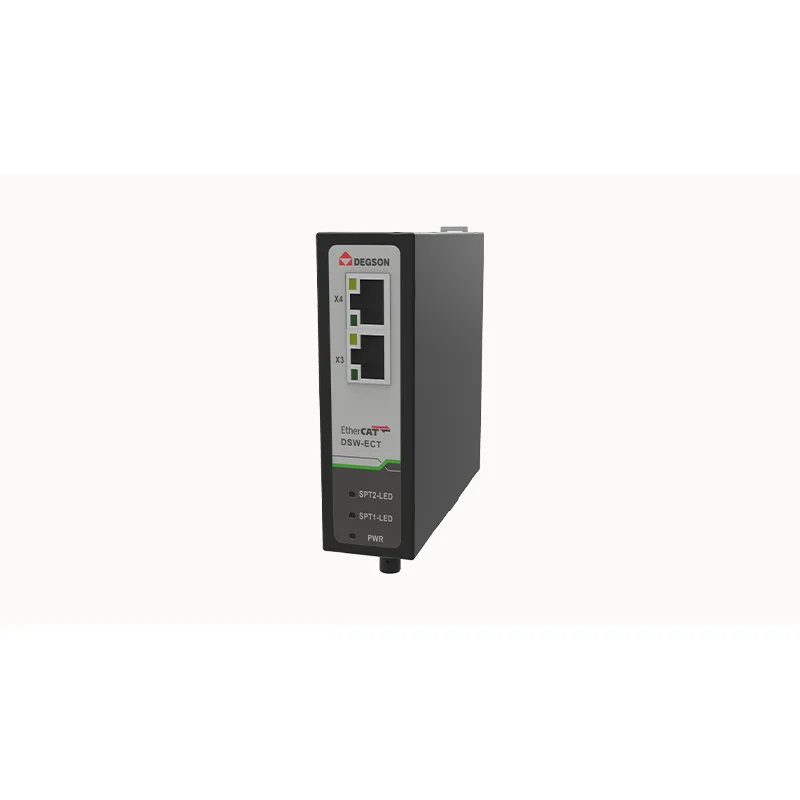

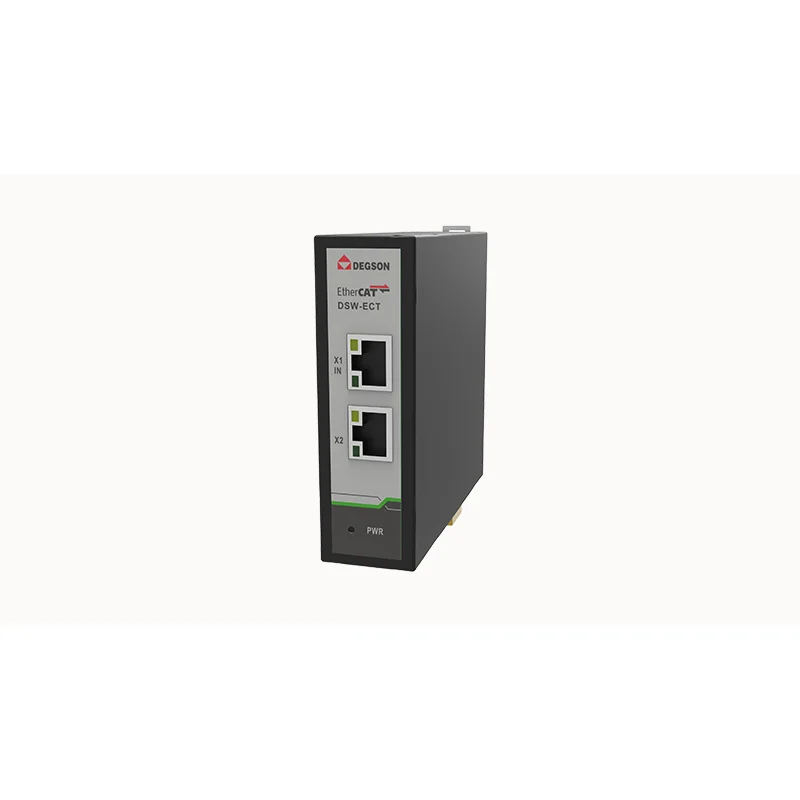

DSW-ECT-A4K0004
Request a quote View on GrossAutomation.com Drawing
Description DSW series RJ45 network port EtherCAT protocol switch (unmanaged), 4 x RJ45
- Network protocol: EtherCAT
- Network interface: 4 x RJ45
- Transmission speed: 100M
- Delay: Approximately 1 microsecond per port
- Input voltage: Rated 24 VDC (18-28 VDC allowed)
- Housing: Aluminum alloy
- Protection rating: IP40
- Dimensions (W x H x D): 29 x 95 x 102 mm

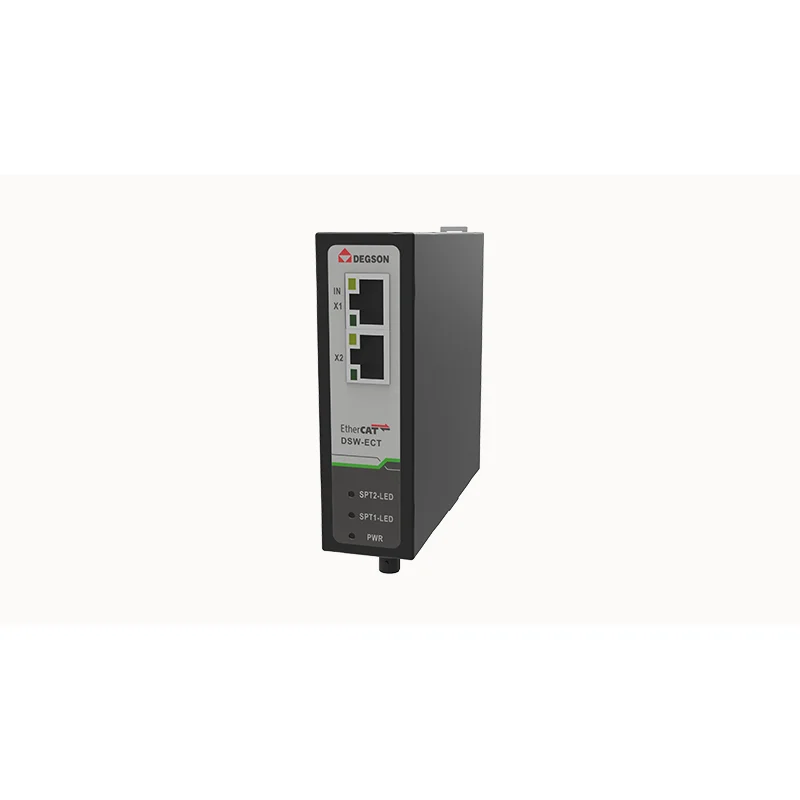

DSW-ECT-A4K0202-S-STA
Request a quote View on GrossAutomation.com Drawing
Description DSW series ST optical fiber EtherCAT protocol switch (unmanaged), 2 x RJ45, 2 x ST
- Network protocol: EtherCAT
- Network interface: 2 x RJ45, 2 x ST
- Transmission speed: 100M
- Delay: Approximately 1 microsecond per port
- Input voltage: Rated 24 VDC (18-28 VDC allowed)
- Housing: Aluminum alloy
- Protection rating: IP40
- Dimensions (W x H x D): 29 x 95 x 102 mm
DSW-ECT-A4K0202-S-STB
Request a quote View on GrossAutomation.com
Description DSW series ST optical fiber EtherCAT protocol switch (unmanaged), 2 x RJ45, 2 x ST
- Network protocol: EtherCAT
- Network interface: 2 x RJ45, 2 x ST
- Transmission speed: 100M
- Delay: Approximately 1 microsecond per port
- Input voltage: Rated 24 VDC (18-28 VDC allowed)
- Housing: Aluminum alloy
- Protection rating: IP40
- Dimensions (W x H x D): 29 x 95 x 102 mm

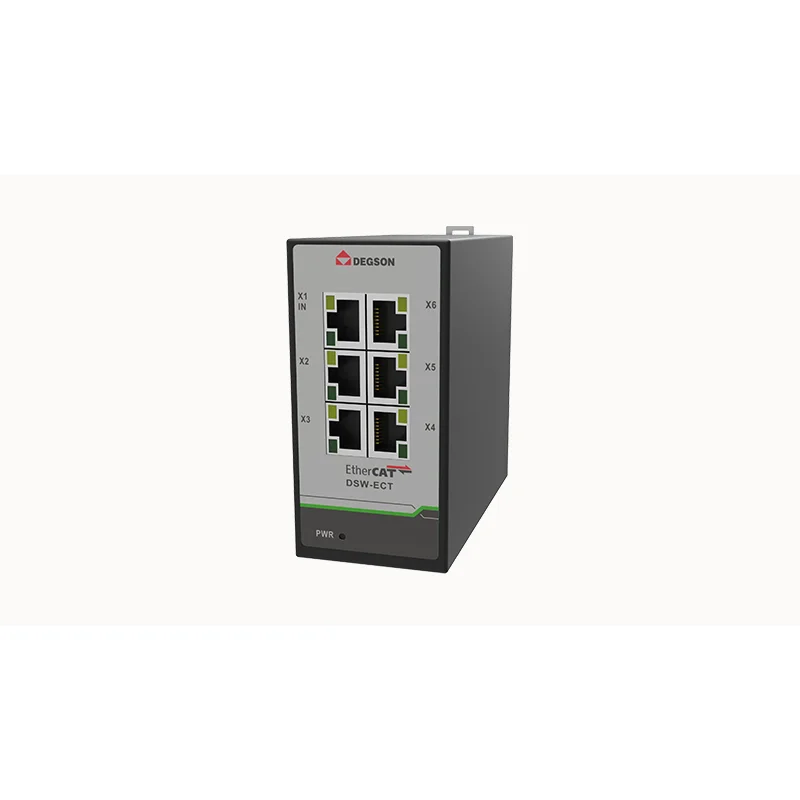

DSW-ECT-A6K0006
Request a quote View on GrossAutomation.com Drawing
Description DSW series RJ45 network port EtherCAT protocol switch (unmanaged), 6 x RJ45
- Network protocol: EtherCAT
- Network interface: 6 x RJ45
- Transmission speed: 100M
- Delay: Approximately 1 microsecond per port
- Input voltage: Rated 24 VDC (18-28 VDC allowed)
- Housing: Aluminum alloy
- Protection rating: IP40
- Dimensions (W x H x D): 47 x 94 x 102 mm

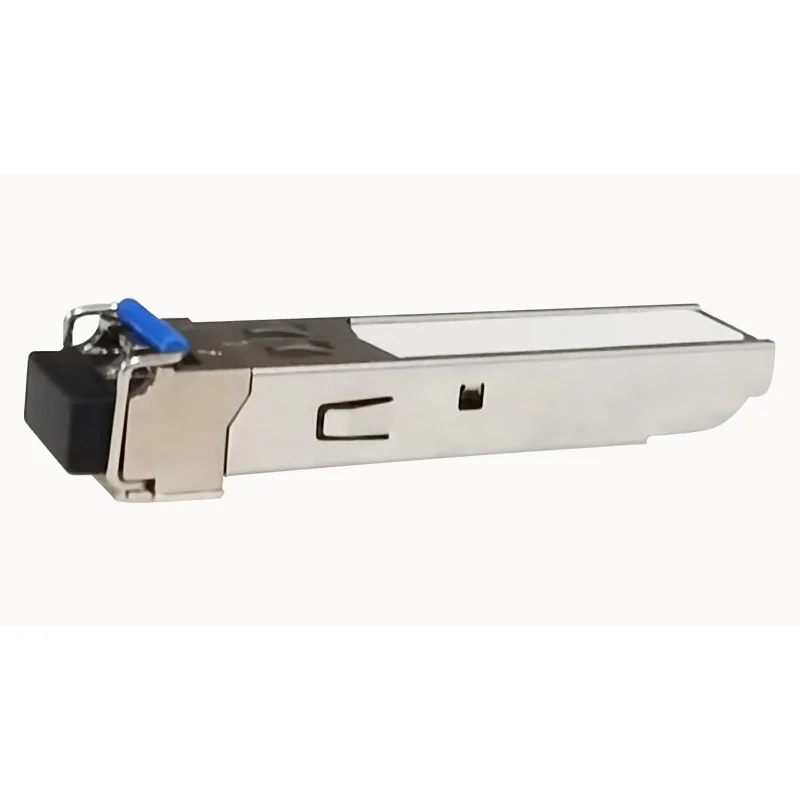

DSW-SFP-01-S-20
Request a quote View on GrossAutomation.com
Description SFP transceiver module, 10/100 Mbps, single mode
- Transmission rate: 10/100 Mbps
- Transfer mode: Single mode
- Matching models: DSW-A5K0104, DSW-A8K0107, DSW-A8K0206

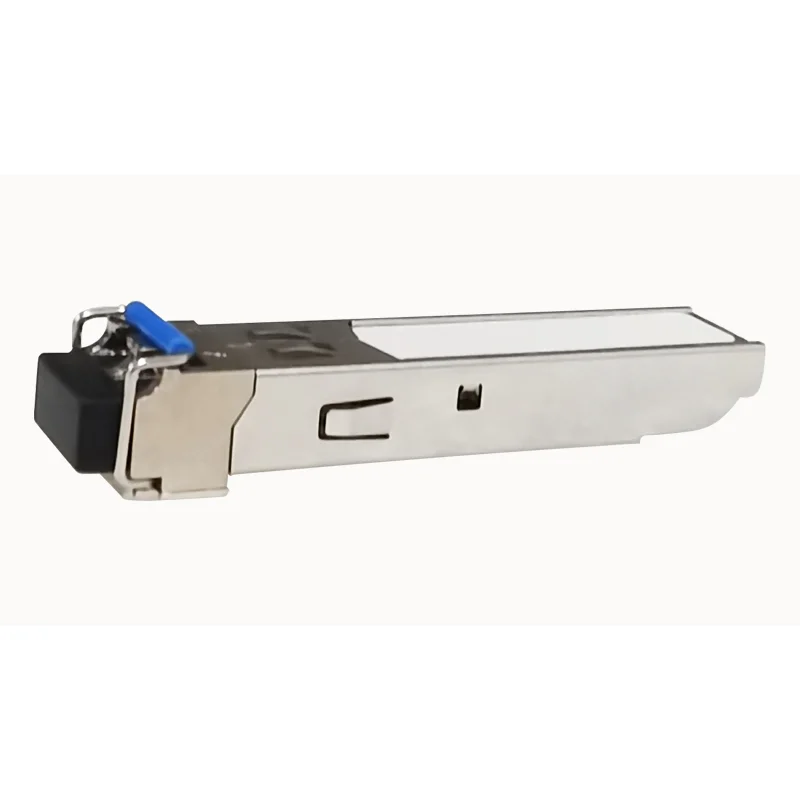

DSW-SFP-10-S-20
Request a quote View on GrossAutomation.com
Description SFP transceiver module, 100/1000 Mbps, single mode
- Transmission rate: 100/1000 Mbps
- Transfer mode: Single mode
- Matching models: DSW-A3K1020, DSW-A6K2040P, DSW-A10K2080P

Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
