Degson DF50 series I/O
30 Degson part numbers. Copy the one you need or request a quote.
Every description in this list includes DF50 series I/O.
DF50-C-CC-FBThis part- CC-Link IE Field Basic bus coupler
- Communication protocol: CC-Link IE Field Basic
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Logical stations: 1 to 4
- Working voltage: 24 V DC +20%/-15%
- Working current: Max. 1.5 A
- Protection grade: IP20

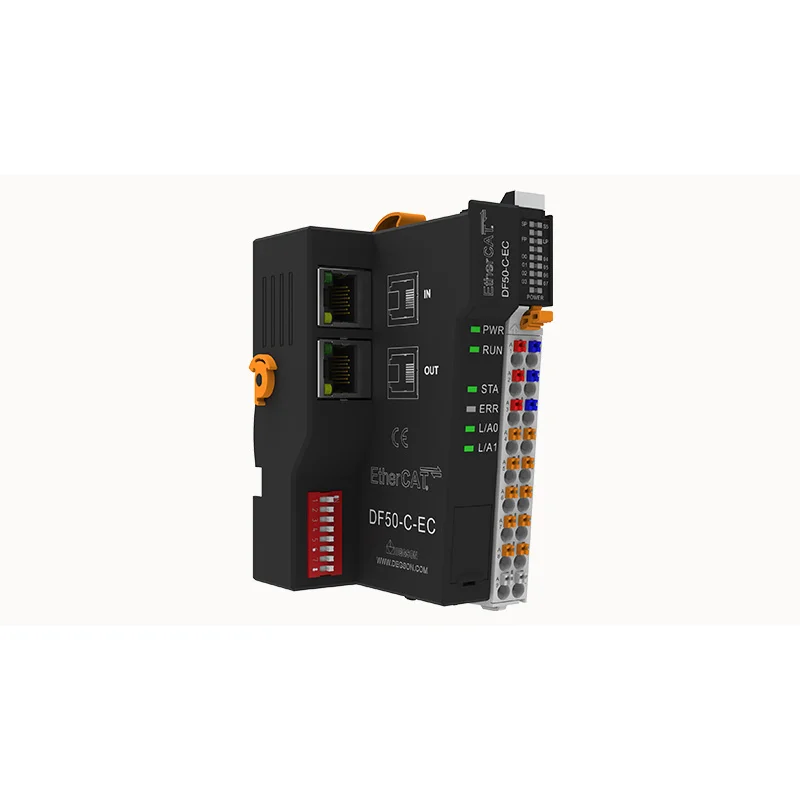

DF50-C-ECThis part- EtherCAT bus coupler
- Communication protocol: EtherCAT
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Address setting: EtherCAT specification, DIP switch
- Minimum cycle time: 1 ms
- Working voltage: 24 V DC +20%/-15%
- Working current: Max. 1.5 A
DF50-C-EN-IPThis part- EtherNet/IP bus coupler
- Communication protocol: EtherNet/IP
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Minimum cycle time: 1 ms
- Working voltage: 24 V DC +20%/-15%
- Working current: Max. 1.5 A
- Protection grade: IP20

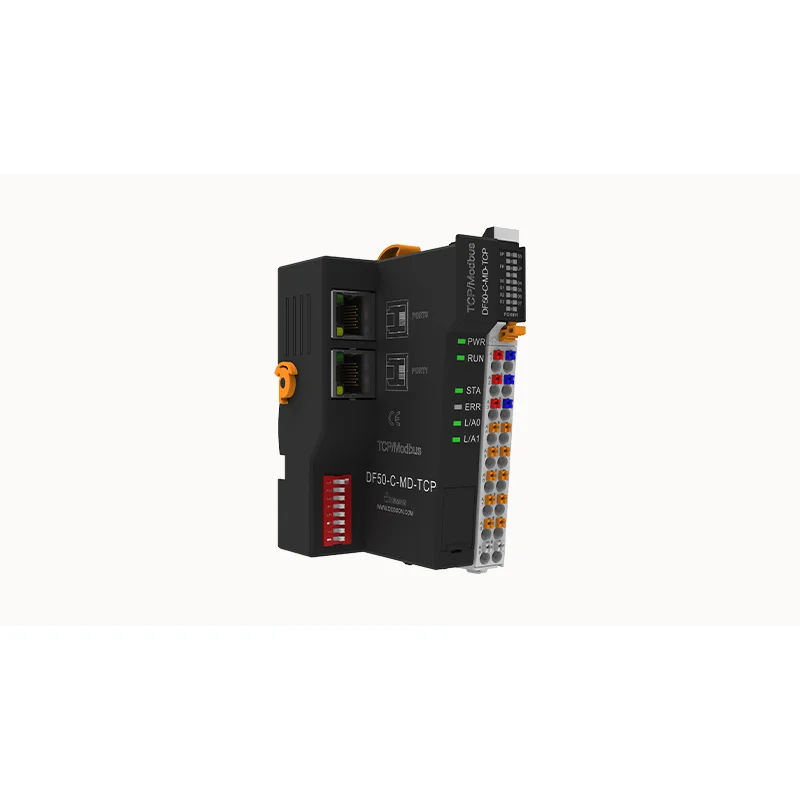

DF50-C-MD-TCPThis part- Modbus TCP bus coupler
- Communication protocol: Modbus TCP
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Working voltage: 24 V DC +20%/-15%
- Working current: Max. 1.5 A
- Protection grade: IP20
- Size (H x W x D): 111 x 48 x 75 mm

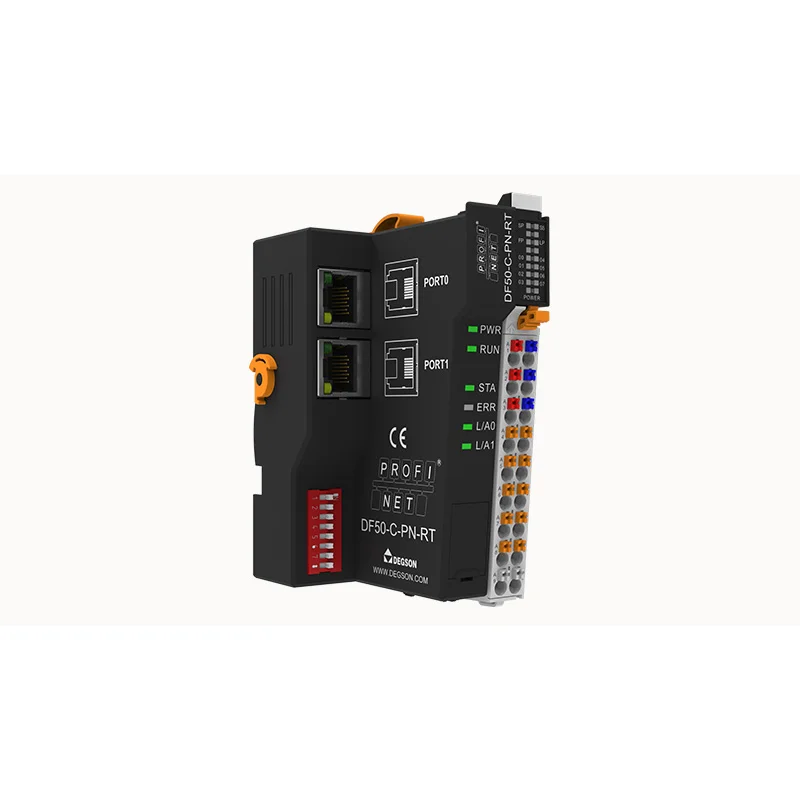

DF50-C-PN-RTThis part- PROFINET bus coupler
- Communication protocol: PROFINET
- Network interface: 2 x RJ45, 10/100 Mbps
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Features: RT Class C, MRP, automatic addressing/topology detection
- Minimum cycle time: 1 ms
- Working voltage: 24 V DC +20%/-15%
- Working current: Max. 1.5 A
DF50-M-16DI-16DO-NThis part- Digital input/output module
- Channels: 16 digital inputs + 16 digital outputs
- Signal type: NPN
- Working voltage: 24 V DC +20%/-15%
- Filtering time: 0-40 ms, configurable
- Size (H x W x D): 111 x 24 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C
DF50-M-16DI-16DO-PThis part- Digital input/output module
- Channels: 16 digital inputs + 16 digital outputs
- Signal type: PNP
- Working voltage: 24 V DC +20%/-15%
- Filtering time: 0-40 ms, configurable
- Size (H x W x D): 111 x 24 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C
DF50-M-16DI-P/NThis part- Digital input module
- Channels: 16 digital inputs
- Signal type: NPN & PNP
- Working voltage: 24 V DC +20%/-15%
- Filtering time: 0.2-40 ms, configurable
- Hardware response time: 200 µs
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
DF50-M-16DI-P/N-TSThis part- Digital input module with low-speed counting
- Channels: 16 digital inputs
- Signal type: NPN & PNP
- Counting: Low-speed counting; rising, falling or double edge, configurable
- Counting range: 0-4294967296
- Working voltage: 24 V DC +20%/-15%
- Filtering time: 0.2-40 ms, configurable
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20

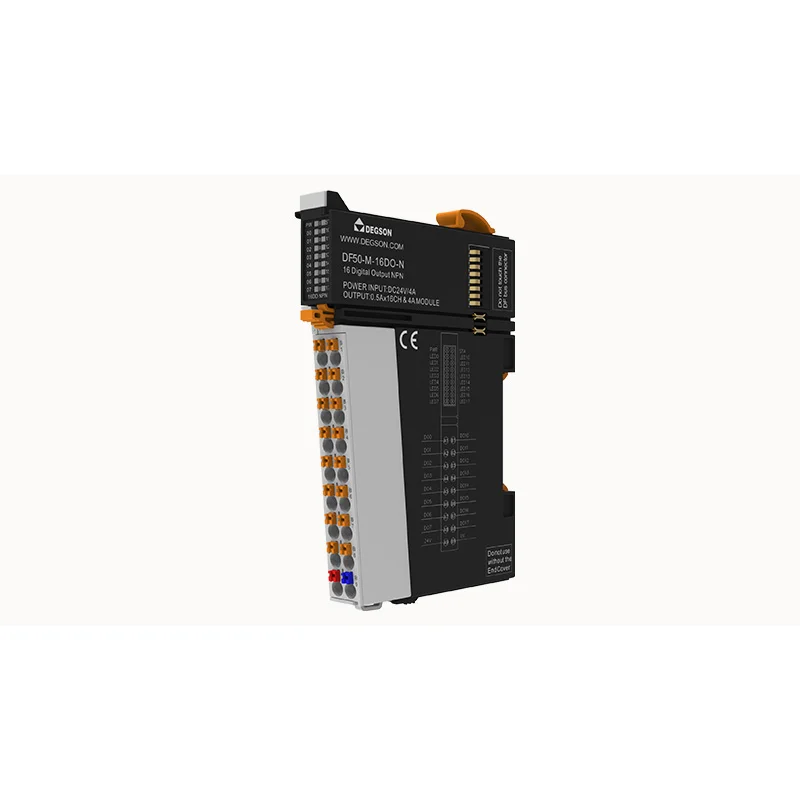

DF50-M-16DO-NThis part- Digital output module
- Channels: 16 digital outputs
- Signal type: NPN
- Output current per channel: Max. 500 mA
- Protection: Short-circuit protection
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

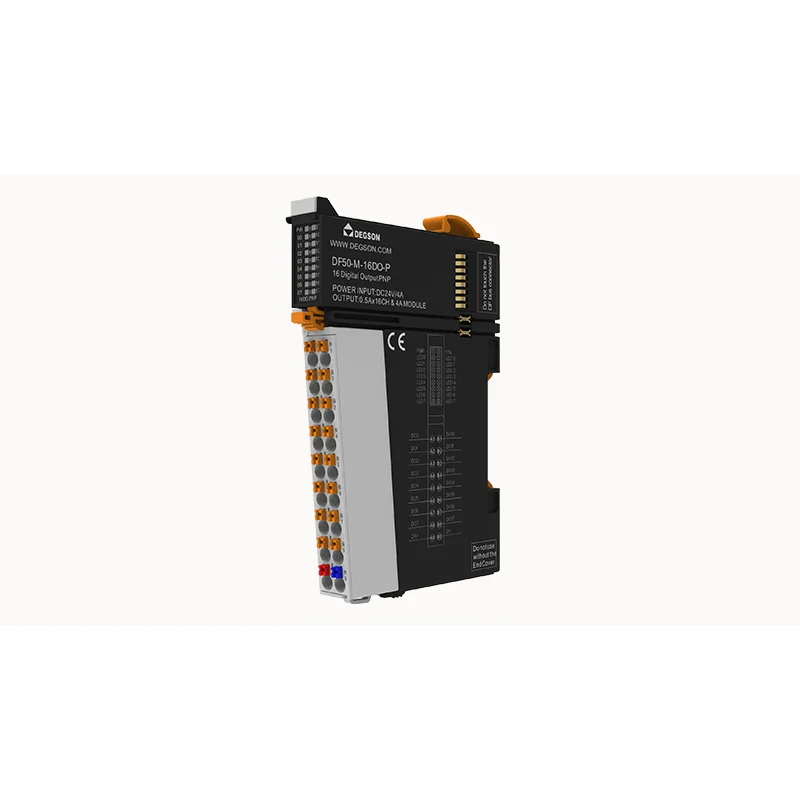

DF50-M-16DO-PThis part- Digital output module
- Channels: 16 digital outputs
- Signal type: PNP
- Output current per channel: Max. 500 mA
- Protection: Short-circuit protection
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

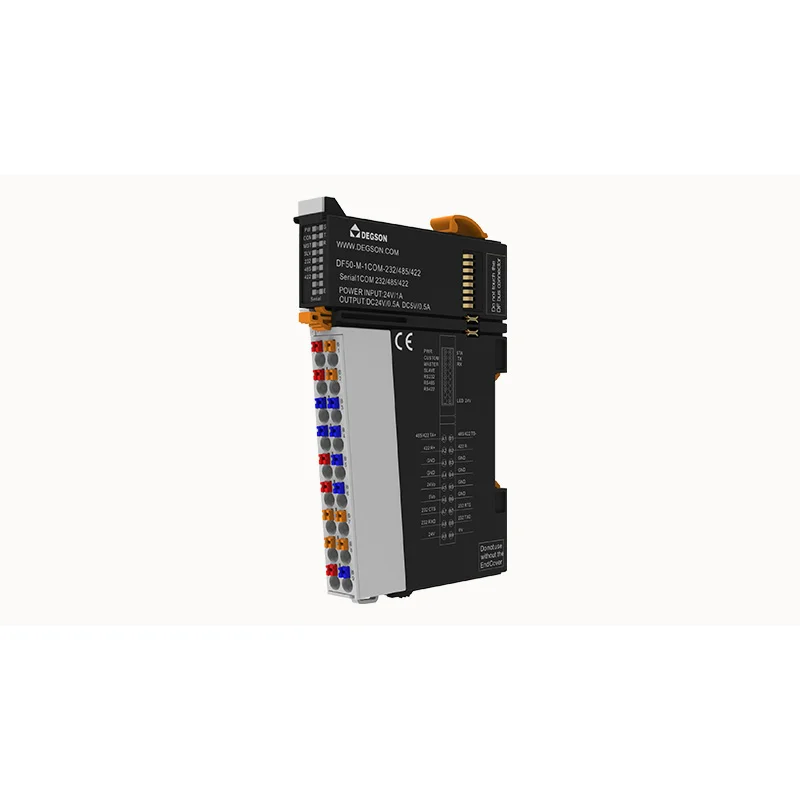

DF50-M-1COM-232/485/422This part- Serial communication module
- Interface: RS232 / RS485 / RS422
- Channels: 1
- Protocol: Modbus RTU, free-protocol transparent mode
- Baud rate: 1200-256000 bps
- Termination resistor: Built-in 120 Ω
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

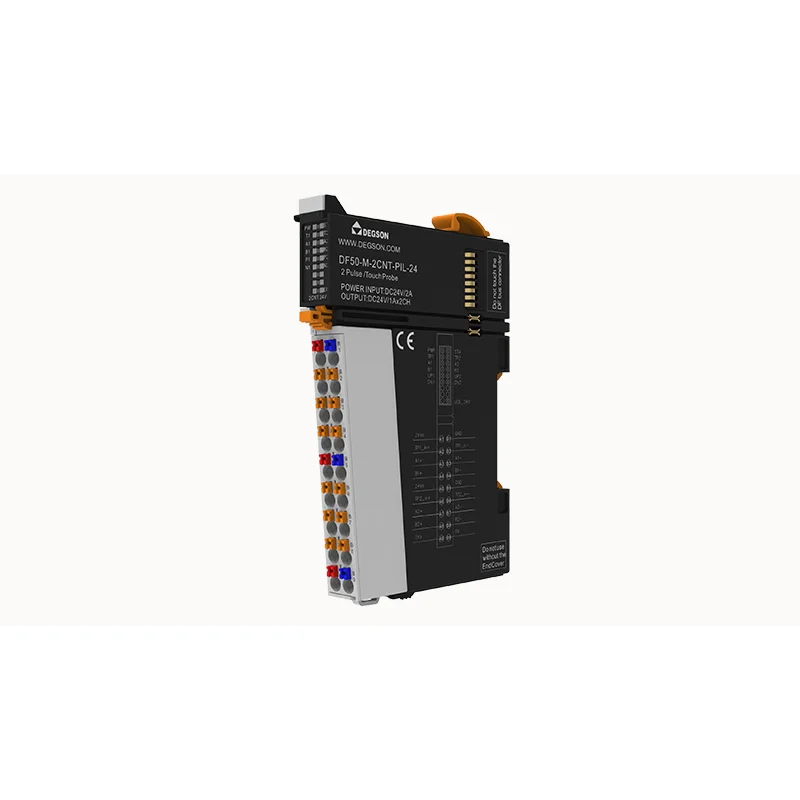

DF50-M-2CNT-PIL-24This part- Pulse counting module
- Channels: 2 counter inputs
- Input level: 24 V
- Maximum count frequency: 1 MHz
- Resolution: 32 bit
- Filtering time: 0.01-1 ms
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
DF50-M-2CNT-PIL-5This part- Pulse counting module
- Channels: 2 counter inputs
- Input level: 5 V
- Maximum count frequency: 1 MHz
- Resolution: 32 bit
- Filtering time: 0.01-1 ms
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
DF50-M-32DI-P/NThis part- Digital input module
- Channels: 32 digital inputs
- Signal type: NPN & PNP
- Working voltage: 24 V DC +20%/-15%
- Filtering time: 0-40 ms, configurable
- Size (H x W x D): 111 x 24 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C
DF50-M-32DO-NThis part- Digital output module
- Channels: 32 digital outputs
- Signal type: NPN
- Output current per channel: Max. 500 mA
- Protection: Overcurrent and short-circuit protection
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 24 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

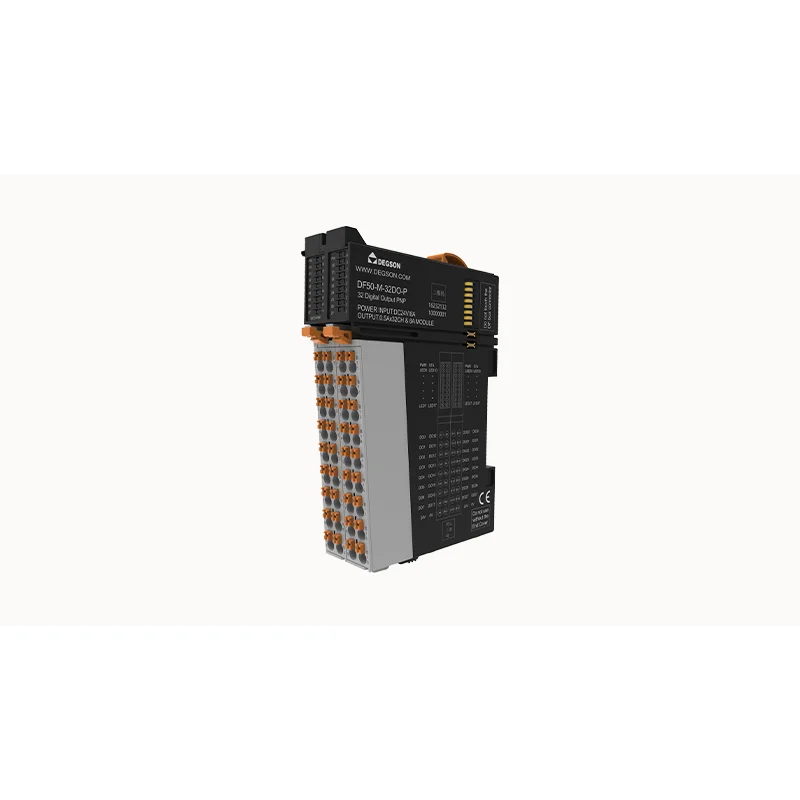

DF50-M-32DO-PThis part- Digital output module
- Channels: 32 digital outputs
- Signal type: PNP
- Output current per channel: Max. 500 mA
- Protection: Overcurrent and short-circuit protection
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 24 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
DF50-M-4AI-UI-6This part- Analog input module
- Channels: 4 analog inputs, voltage or current
- Voltage range: ±10 V, 0-10 V, 2-10 V, ±5 V, 0-5 V, 1-5 V
- Current range: 0-20 mA, 4-20 mA
- Resolution: 16 bit
- Input accuracy: ±0.20%
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
DF50-M-4AO-UI-6This part- Analog output module
- Channels: 4 analog outputs, voltage or current
- Voltage range: ±10 V, 0-10 V, 2-10 V, ±5 V, 0-5 V, 1-5 V
- Current range: 0-20 mA, 4-20 mA
- Resolution: 16 bit
- Output accuracy: ±0.50%
- Isolation: Magnetic isolation
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
DF50-M-4DO-P-2AThis part- Digital output module
- Channels: 4 digital outputs
- Signal type: PNP
- Output current per channel: Max. 2 A
- Protection: Short-circuit protection, over-temperature shutdown
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
DF50-M-4DORThis part- Relay output module
- Channels: 4 relay outputs
- Contact type: N.O
- Maximum output current: 5 A per channel, 20 A per module
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C

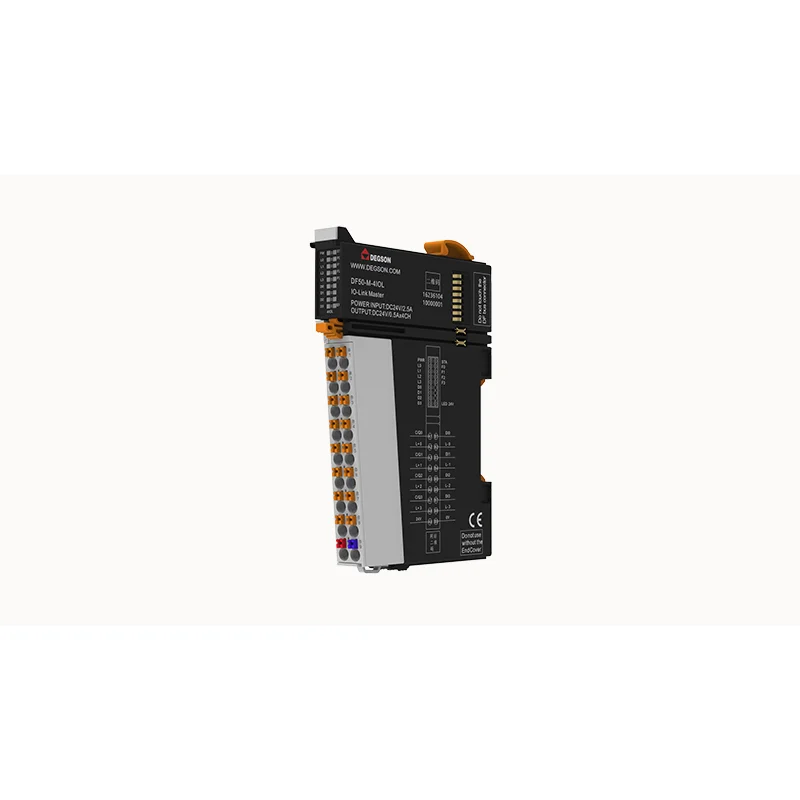

DF50-M-4IOLThis part- IO-Link master module
- Channels: 4 IO-Link ports
- Port type: Type A
- Digital I/O mode: PNP input or PNP output per port
- Rated output current per channel: 500 mA
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

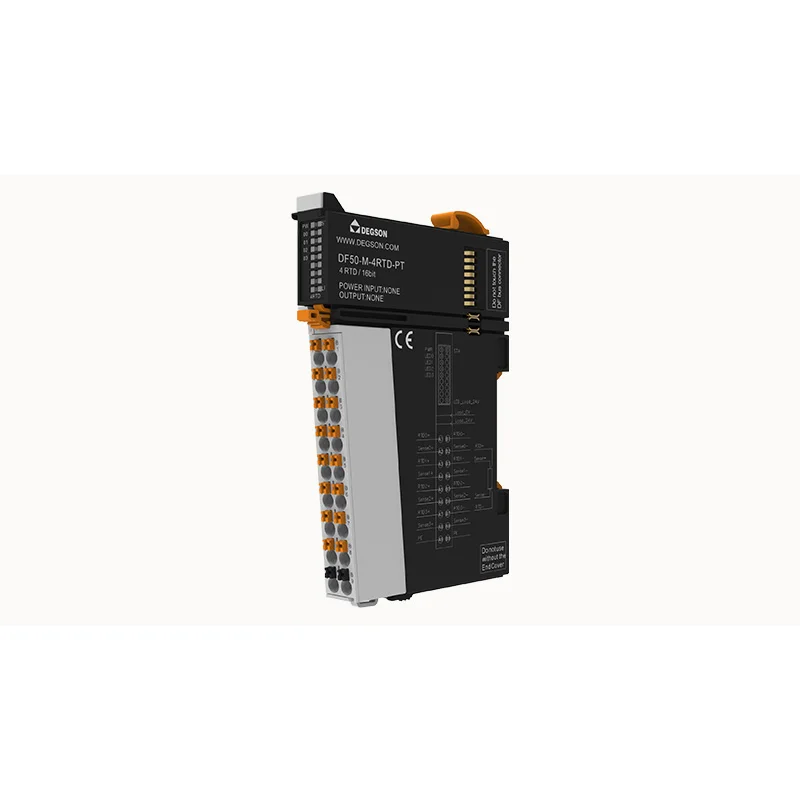

DF50-M-4RTD-PTThis part- RTD temperature module
- Channels: 4 RTD inputs
- Sensor types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10
- Resolution: 16 bit, 0.1 °C
- Conversion time: 100-800 ms, configurable
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

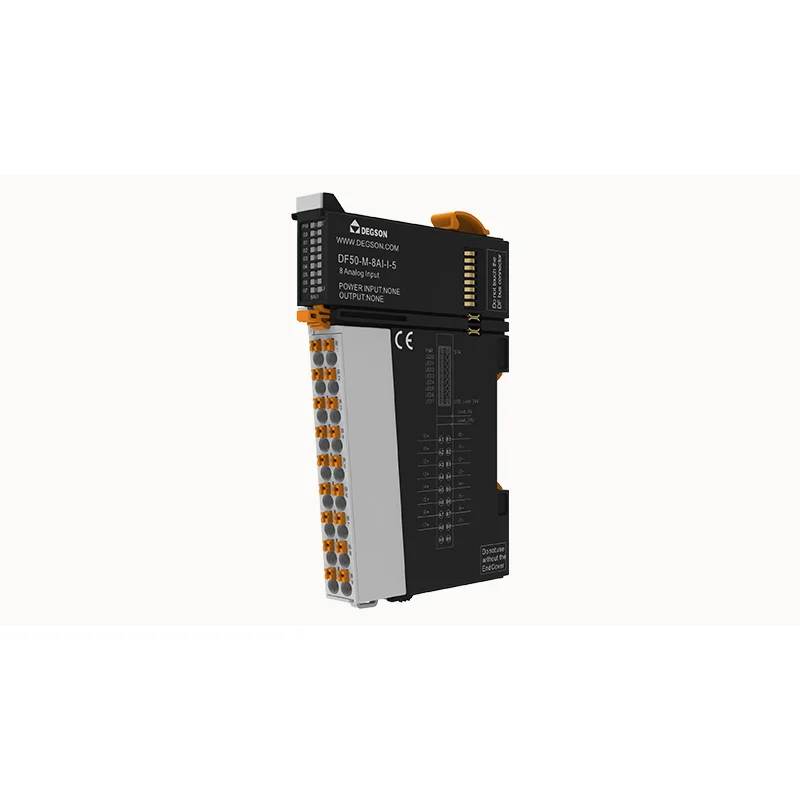

DF50-M-8AI-I-5This part- Analog input module
- Channels: 8 analog inputs, current
- Current range: 0-20 mA, 4-20 mA
- Signal type: Single-ended
- Resolution: 16 bit
- Input accuracy: ±0.20%
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
DF50-M-8AI-U-4This part- Analog input module
- Channels: 8 analog inputs, voltage
- Voltage range: ±10 V, 0-10 V, 2-10 V, ±5 V, 0-5 V, 1-5 V
- Signal type: Single-ended
- Resolution: 16 bit
- Input accuracy: ±0.20%
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
DF50-M-8AO-I-5This part- Analog output module
- Channels: 8 analog outputs, current
- Current range: 0-20 mA, 4-20 mA
- Resolution: 16 bit
- Output accuracy: ±0.50%
- Conversion time: 60 µs per channel
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
DF50-M-8AO-U-4This part- Analog output module
- Channels: 8 analog outputs, voltage
- Voltage range: ±10 V, 0-10 V, 2-10 V, ±5 V, 0-5 V, 1-5 V
- Resolution: 16 bit
- Output accuracy: ±0.50%
- Conversion time: 60 µs per channel
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
DF50-M-8TCThis part- Thermocouple temperature module
- Channels: 8 thermocouple inputs
- Thermocouple types: K, E, T, J, B, S, R, N, C, L
- Measuring range: -270 to 1370 °C
- Resolution: 16 bit, 0.1 °C
- Precision: ±0.3%
- Conversion time: 125 ms
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
DF50-M-DC-U-0This part- Voltage distribution module
- Channels: 16 x 0 V DC outputs
- System feed current: <100 mA
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C
- Wire connection: Push-in terminal block
DF50-M-DC-U-24This part- Voltage distribution module
- Channels: 16 x 24 V DC outputs
- System feed current: <100 mA
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C
- Wire connection: Push-in terminal block
Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
