Degson i/O modules and bus couplers
147 part numbers in 4 series. Pick a series to see every part number with its description and a quote button.
Series
- DFH67 IP67 field I/O and IO-Link59 parts
- DF20 I/O modules51 parts
- DF50 series I/O30 parts
- DF58 series I/O7 parts
DF58 series I/O
Every description in this list includes DF58 series I/O.

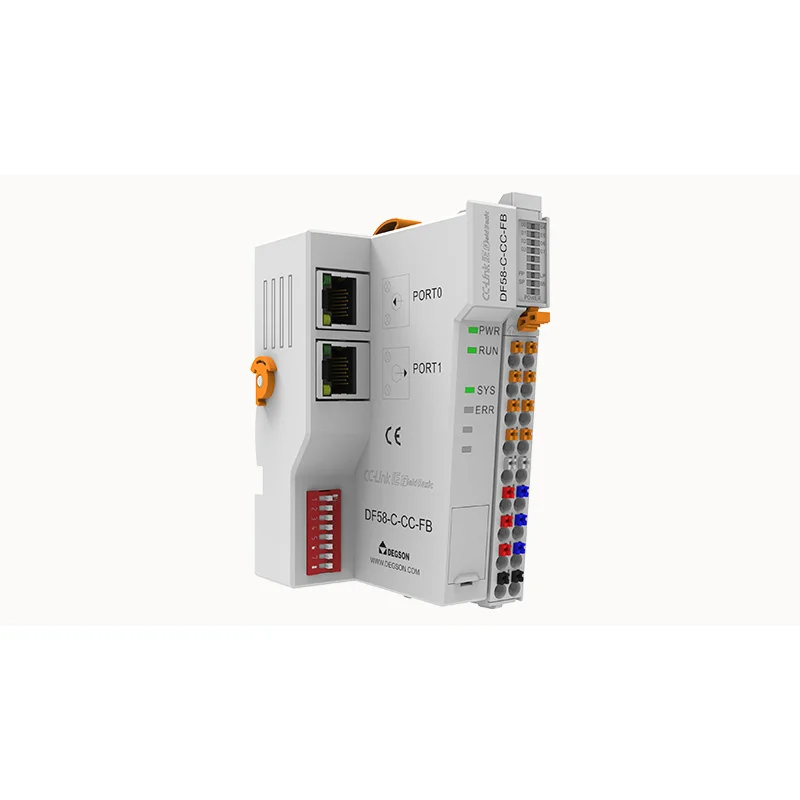

DF58-C-CC-FBThis part- CC-Link IE Field Basic bus coupler
- Communication protocol: CC-Link IE Field Basic
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Address range: 1 to 254
- Supply load current: Max. 10 A
- Supply load voltage: 24 to 36 V DC
- Working voltage: 24 V DC +20%/-15%

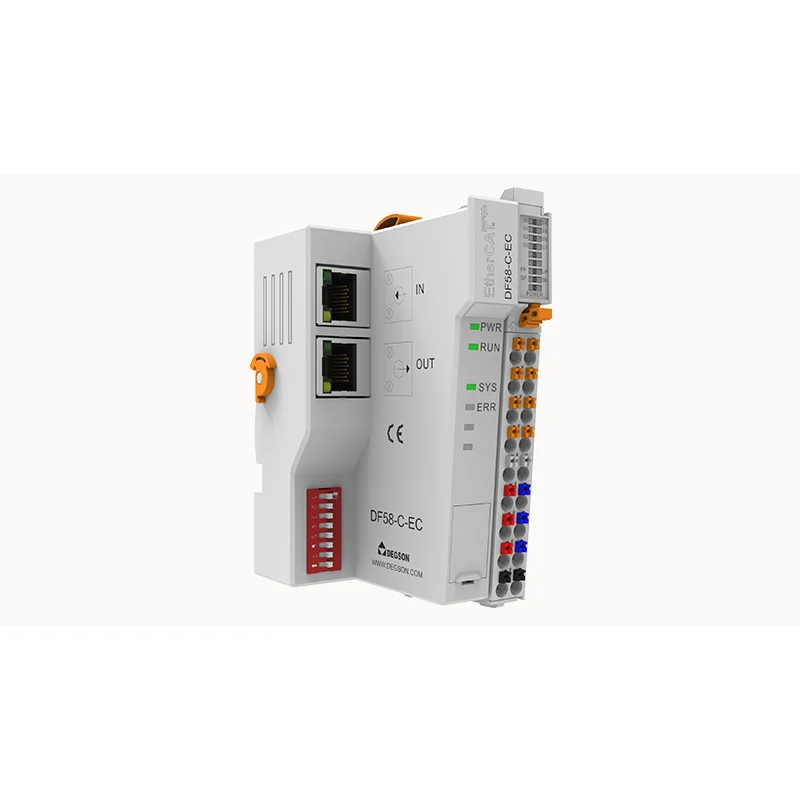

DF58-C-ECThis part- EtherCAT bus coupler
- Communication protocol: EtherCAT
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Address setting: EtherCAT specification, DIP switch
- Supply load current: Max. 10 A
- Supply load voltage: 24 to 36 V DC
- Working voltage: 24 V DC +20%/-15%

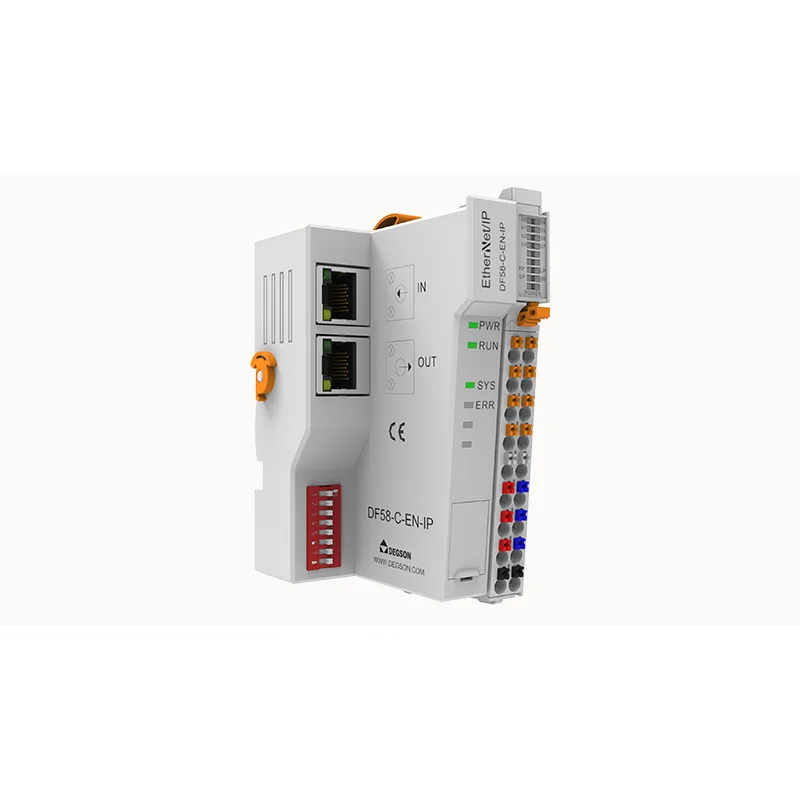

DF58-C-EN-IPThis part- EtherNet/IP bus coupler
- Communication protocol: EtherNet/IP
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Minimum cycle time: 1 ms
- Supply load current: Max. 10 A
- Supply load voltage: 24 to 36 V DC
- Working voltage: 24 V DC +20%/-15%
DF58-C-MD-TCPThis part- Modbus TCP/IP bus coupler
- Communication protocol: Modbus TCP/IP
- Network interface: 1 x RJ45
- Integrated digital inputs: 8, NPN & PNP
- Supported Modbus functions: 02, 03, 05, 06, 15, 16
- Supply load current: Max. 10 A
- Supply load voltage: 24 to 36 V DC
- Working voltage: 24 V DC +20%/-15%
- Working current: 0.35 to 6 A

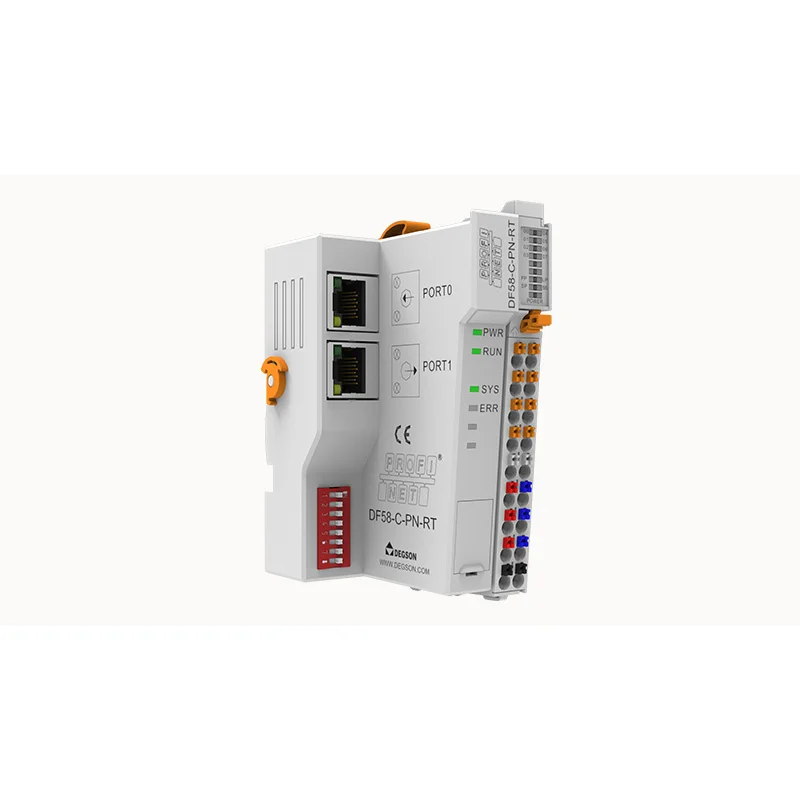

DF58-C-PN-RTThis part- PROFINET bus coupler
- Communication protocol: PROFINET
- Network interface: 2 x RJ45
- Extensible I/O modules: 32
- Integrated digital inputs: 8, NPN & PNP
- Features: RT Class C, MRP, automatic addressing/topology detection
- Minimum cycle time: 1 ms
- Supply load current: Max. 10 A
- Supply load voltage: 24 to 36 V DC

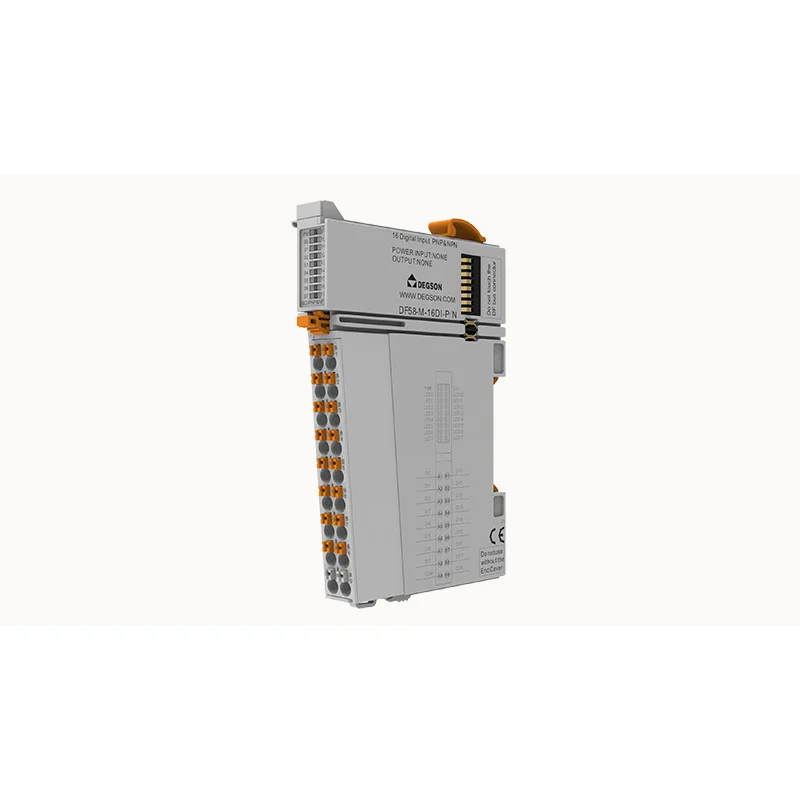

DF58-M-16DI-P/NThis part- Digital input module
- Channels: 16 digital inputs
- Signal type: NPN & PNP
- Working voltage: 24 V DC +20%/-15%
- Filtering time: None, 0.25, 0.5, 1 (default), 2, 4, 8, 16, 32 ms
- Hardware response time: 100 µs
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail

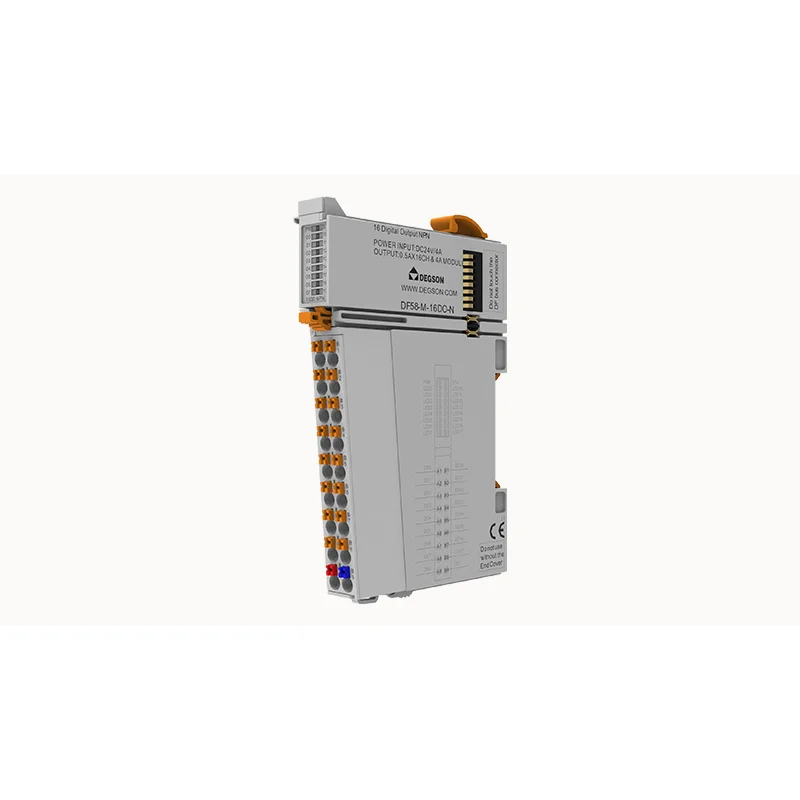

DF58-M-16DO-NThis part- Digital output module
- Channels: 16 digital outputs
- Signal type: NPN
- Output current per channel: Max. 500 mA
- Working voltage: 24 V DC +20%/-15%
- Size (H x W x D): 111 x 12 x 75 mm
- Protection grade: IP20
- Installation: 35 mm DIN rail
- Working temperature: -25 to 60 °C
Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
