Degson Inductive proximity sensors
68 Degson part numbers. Copy the one you need or request a quote.
Every description in this list includes Inductive proximity sensor, Indicator lights: Operating status: LED, Output mode: NPN.
DLE-N08-2.5NCThis part- Installation method: Non-flush
- Detection distance: 2.5mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N08-2.5NOThis part- Installation method: Non-flush
- Detection distance: 2.5mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N09-2.5NCThis part- Installation method: Non-flush
- Detection distance: 2.5mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N09-2.5NOThis part- Installation method: Non-flush
- Detection distance: 2.5mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N10-2.5NCThis part- Installation method: Non-flush
- Detection distance: 2.5mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N10-2.5NOThis part- Installation method: Non-flush
- Detection distance: 2.5mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N12-04NCThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLE-N12-04NOThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLL-F08-02NCThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-F08-02NOThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-F12-04NCThis part- Installation method: Flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-F12-04NOThis part- Installation method: Flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-F18-08NCThis part- Installation method: Flush
- Detection distance: 8.0mm±10%
- Thread specifications: M18
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-F18-08NOThis part- Installation method: Flush
- Detection distance: 8.0mm±10%
- Thread specifications: M18
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-N08-04NCThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-N08-04NOThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-N12-08NCThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLL-N12-08NOThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLQ-F17-05NCThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing

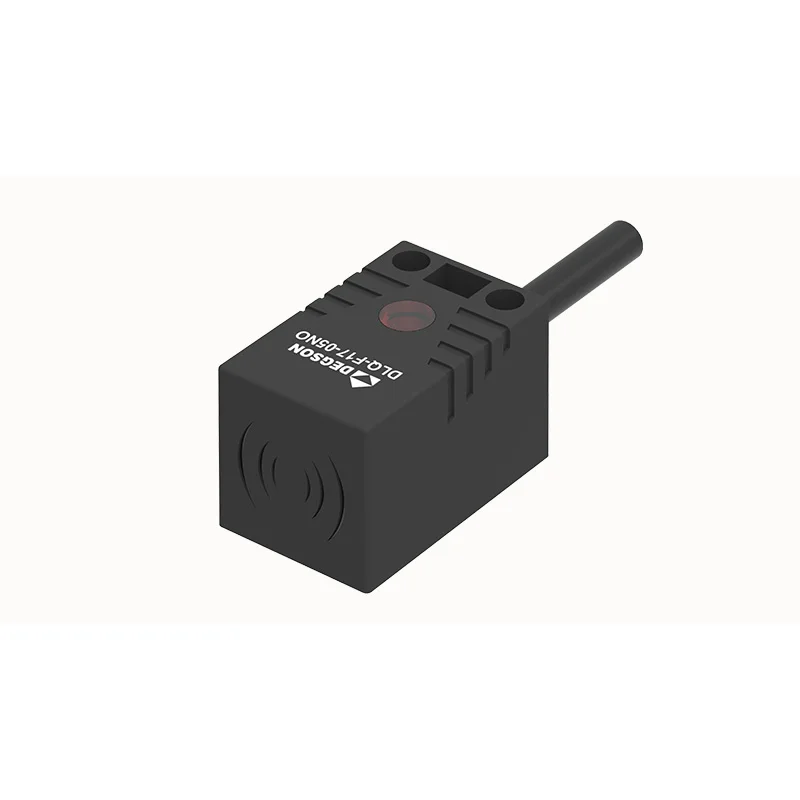

DLQ-F17-05NOThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing

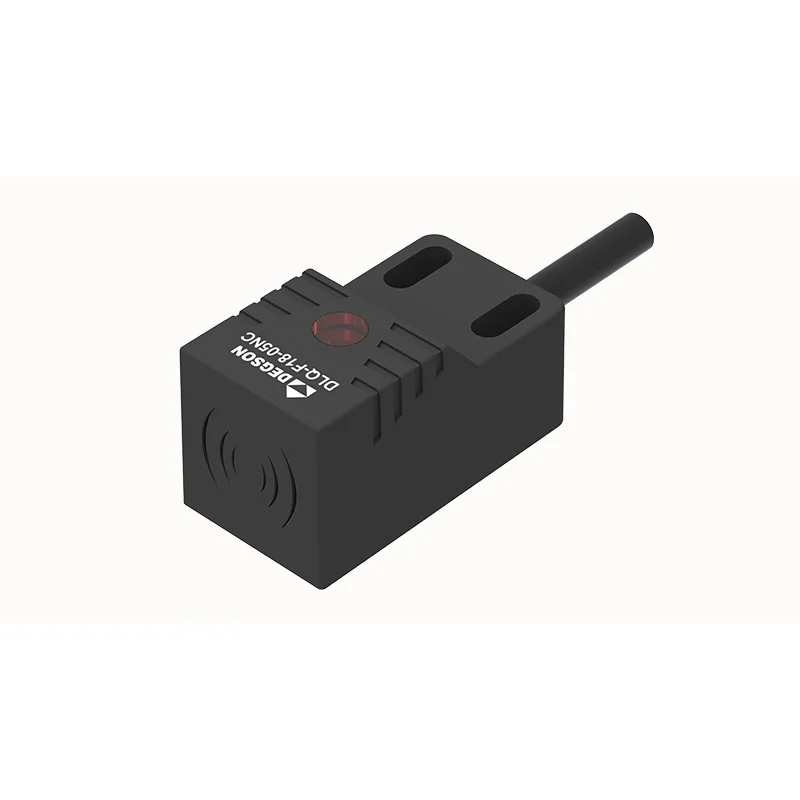

DLQ-F18-05NCThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLQ-F18-05NOThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLQ-F18C-05NCThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing

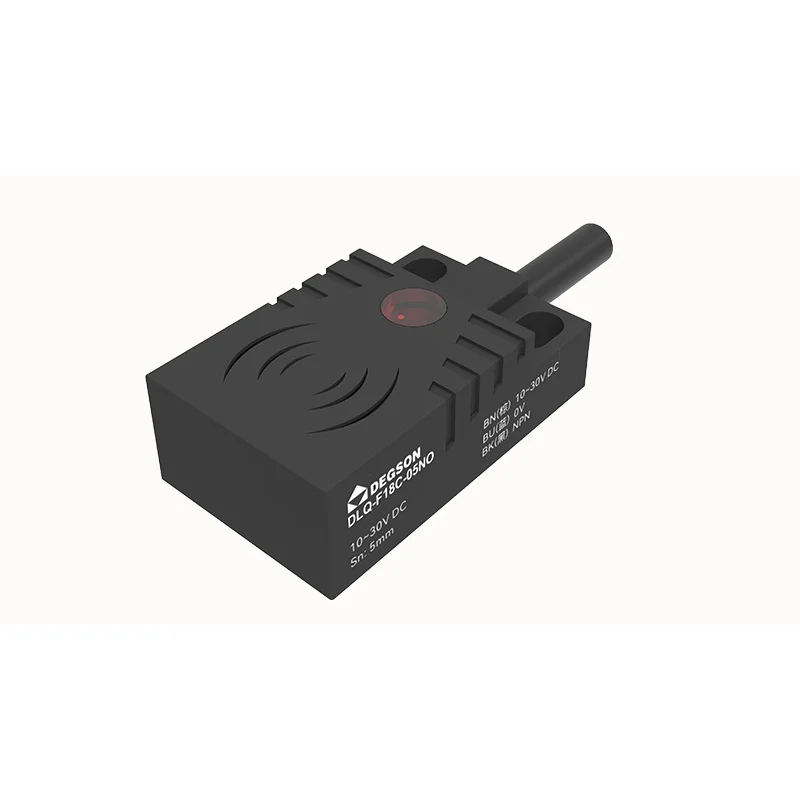

DLQ-F18C-05NOThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLQ-N17-08NCThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing

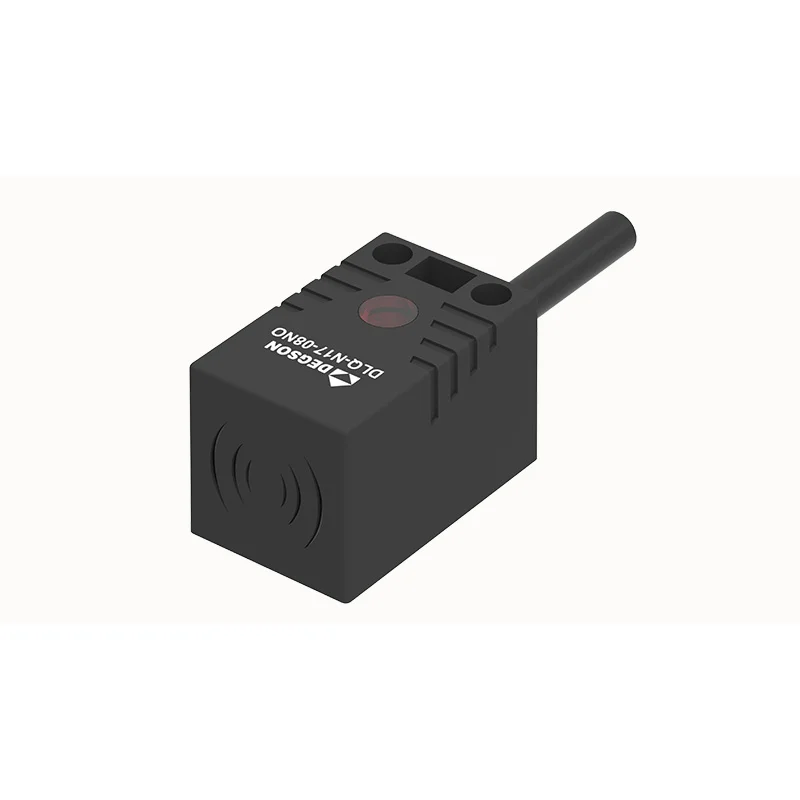

DLQ-N17-08NOThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLQ-N18-08NCThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLQ-N18-08NOThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing

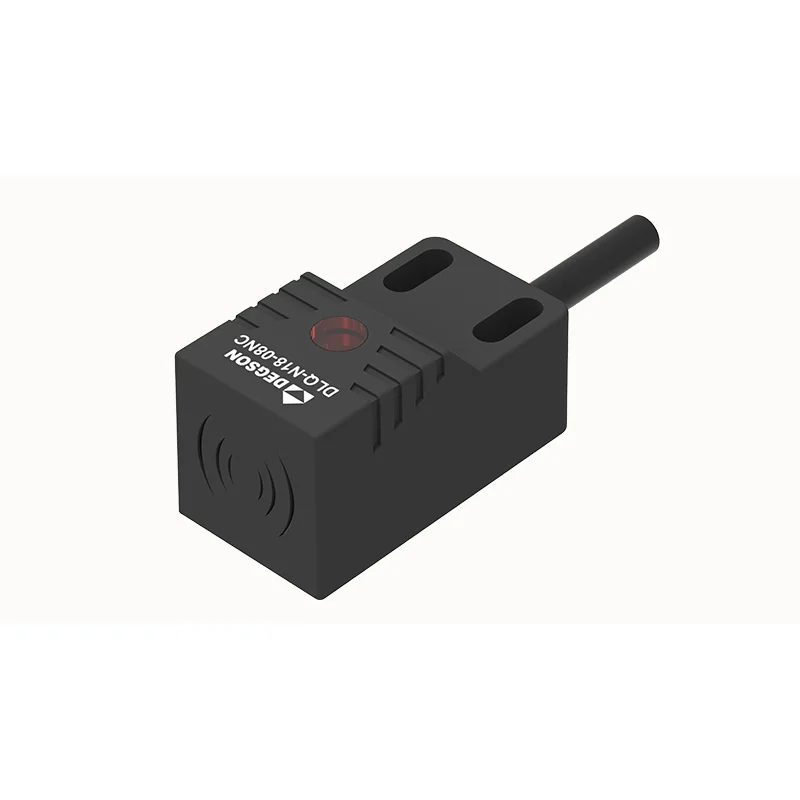

DLQ-N18C-08NCThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing

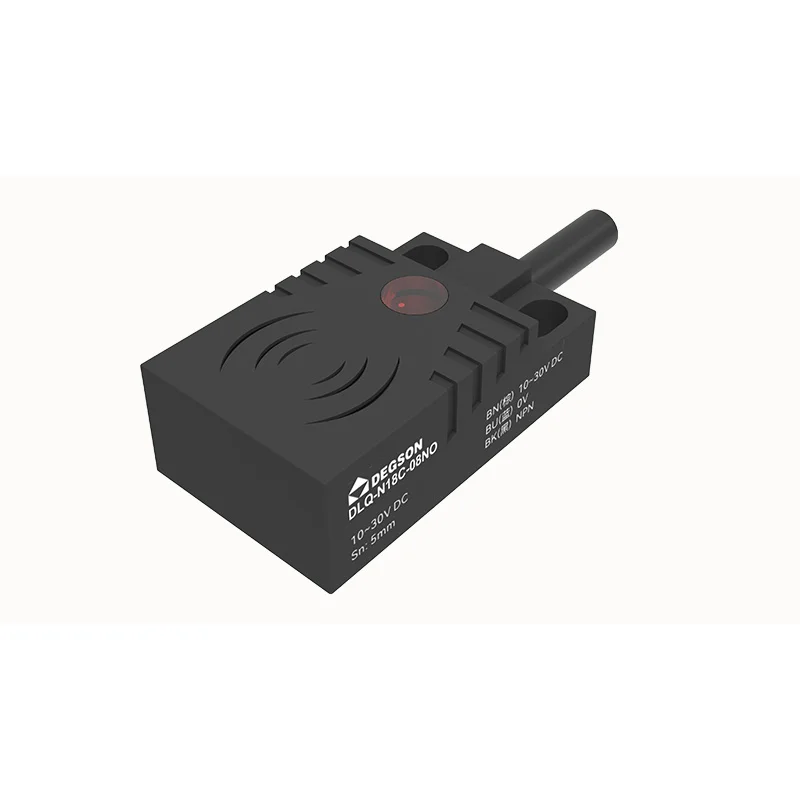

DLQ-N18C-08NOThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLR-F08-1.5NCThis part- Installation method: Flush
- Detection distance: 1.5mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-F08-1.5NOThis part- Installation method: Flush
- Detection distance: 1.5mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-F12-02NCThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-F12-02NOThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-F18-05NCThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Thread specifications: M18
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-F18-05NOThis part- Installation method: Flush
- Detection distance: 5.0mm±10%
- Thread specifications: M18
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-N08-02NCThis part- Installation method: Non-flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-N08-02NOThis part- Installation method: Non-flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-N12-04NCThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-N12-04NOThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-N18-08NCThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Thread specifications: M18
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLR-N18-08NOThis part- Installation method: Non-flush
- Detection distance: 8.0mm±10%
- Thread specifications: M18
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLS-F08-02NCThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLS-F08-02NOThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLS-F12-04NCThis part- Installation method: Flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLS-F12-04NOThis part- Installation method: Flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLS-N08-04NCThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLS-N08-04NOThis part- Installation method: Non-flush
- Detection distance: 4.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLSS-F08-02NCThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLSS-F08-02NOThis part- Installation method: Flush
- Detection distance: 2.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLSS-F12-04NCThis part- Installation method: Flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLSS-F12-04NOThis part- Installation method: Flush
- Detection distance: 4.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLX-F03-0.8NCThis part- Installation method: Flush
- Detection distance: 0.8mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 100mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLX-F03-0.8NOThis part- Installation method: Flush
- Detection distance: 0.8mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 100mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLX-F04-1.2NCThis part- Installation method: Flush
- Detection distance: 1.2mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLX-F04-1.2NOThis part- Installation method: Flush
- Detection distance: 1.2mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLX-F04-1.5NCThis part- Installation method: Flush
- Detection distance: 1.5mm±10%
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLX-F04-1.5NOThis part- Installation method: Flush
- Detection distance: 1.5mm±10%
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC) between the power supply terminals and the casing
DLX-F05-1.5NCThis part- Installation method: Flush
- Detection distance: 1.5mm±10%
- Thread specifications: M5
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLX-F05-1.5NOThis part- Installation method: Flush
- Detection distance: 1.5mm±10%
- Thread specifications: M5
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLY-F08-03NCThis part- Installation method: Flush
- Detection distance: 3.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLY-F08-03NOThis part- Installation method: Flush
- Detection distance: 3.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLY-F12-06NCThis part- Installation method: Flush
- Detection distance: 6.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLY-F12-06NOThis part- Installation method: Flush
- Detection distance: 6.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤2.0V
- Load current: 150mA
DLY-N08-06NCThis part- Installation method: Non-flush
- Detection distance: 6.0mm±10%
- Thread specifications: M8
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLY-N08-06NOThis part- Installation method: Non-flush
- Detection distance: 6.0mm±10%
- Thread specifications: M8
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLY-N12-10NCThis part- Installation method: Non-flush
- Detection distance: 10.0mm±10%
- Thread specifications: M12
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
DLY-N12-10NOThis part- Installation method: Non-flush
- Detection distance: 10.0mm±10%
- Thread specifications: M12
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Consume current: ≤10mA
- Residual voltage: ≤1.5V
- Load current: 150mA
Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
Need it built, not just bought?
We can take these Degson sensors (proximity and photoelectric) and ship your enclosure ready to wire. Our UL 508A panel shop builds control panels around them.
