Degson sensors (proximity and photoelectric)
144 part numbers in 6 series. Pick a series to see every part number with its description and a quote button.
Series
- Inductive proximity sensors68 parts
- Slot (fork) photoelectric sensors33 parts
- Photoelectric sensors20 parts
- Laser photoelectric sensors10 parts
- Capacitive proximity sensors8 parts
- Sensor test boxes and cables5 parts
Laser photoelectric sensors
Every description in this list includes Laser photoelectric sensor.
DELC-RM10NThis part- Optical working principle: Retro-reflective
- Detection distance: 10000mm
- Light source: Red laser, 650nm, Class 2
- Indicator lights: Output function: Yellow LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: NPN open collector
- Response time: 0.25ms
- Operating voltage: 12~24V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤1.5V (100mA)
DELC-RM10PThis part- Optical working principle: Retro-reflective
- Detection distance: 10000mm
- Light source: Red laser, 650nm, Class 2
- Indicator lights: Output function: Yellow LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: PNP open collector
- Response time: 0.25ms
- Operating voltage: 12~24V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤1.5V (100mA)
DELC-TM30NThis part- Optical working principle: Through-beam
- Detection distance: 30000mm
- Light source: Red laser 650nm, Class 1
- Indicator lights: Output function: Yellow LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: NPN open collector
- Response time: 0.25ms
- Operating voltage: 12~24V DC±10%
- Consume current: Transmitter ≤30mA, Receiver ≤30mA
- Residual voltage: ≤2.0V (100mA)
DELC-TM30PThis part- Optical working principle: Through-beam
- Detection distance: 30000mm
- Light source: Red laser 650nm, Class 1
- Indicator lights: Output function: Yellow LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: PNP open collector
- Response time: 0.25ms
- Operating voltage: 12~24V DC±10%
- Consume current: Transmitter ≤30mA, Receiver ≤30mA
- Residual voltage: ≤2.0V (100mA)

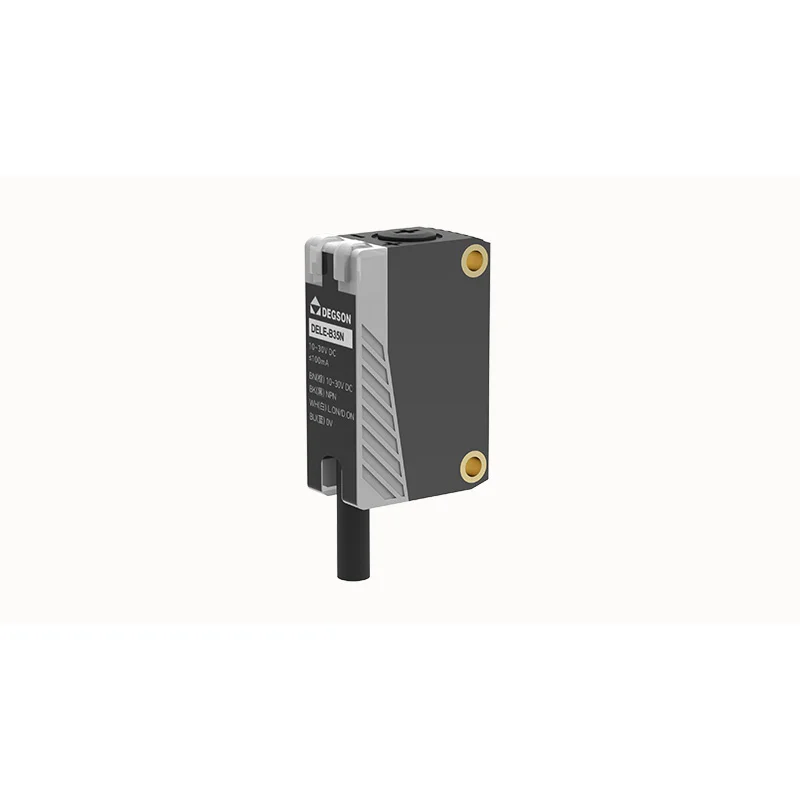

DELE-B35NThis part- Optical working principle: Diffuse reflection with background suppression
- Detection distance: 20~350mm
- Light source: Red laser, 650nm (modulated), Class 2
- Indicator lights: Operating indicator light: Green; Output indicator light: Red
- Switch mode: L.on (light-in action) / D.on (light-blocking action) can be switched
- Output mode: NPN open collector
- Response time: ≤1.2ms
- Operating voltage: 10~30V DC
- Consume current: ≤20mA
- Residual voltage: <1.5V
DELE-B35PThis part- Optical working principle: Diffuse reflection with background suppression
- Detection distance: 20~350mm
- Light source: Red laser, 650nm (modulated), Class 2
- Indicator lights: Operating indicator light: Green; Output indicator light: Red
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: PNP open collector
- Response time: ≤1.2ms
- Operating voltage: 10~30V DC
- Consume current: ≤20mA
- Residual voltage: <1.5V
DELE-D40NThis part- Optical working principle: Diffuse reflection
- Detection distance: 400mm
- Light source: Red laser, 650nm, Class 2
- Indicator lights: Output function: Yellow LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: NPN open collector
- Response time: 0.25ms
- Operating voltage: 12~24V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤1.5V (100mA)
DELE-D40PThis part- Optical working principle: Diffuse reflection
- Detection distance: 400mm
- Light source: Red laser, 650nm, Class 2
- Indicator lights: Output function: Yellow LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: PNP open collector
- Response time: 0.25ms
- Operating voltage: 12~24V DC±10%
- Consume current: ≤20mA
- Residual voltage: ≤1.5V (100mA)

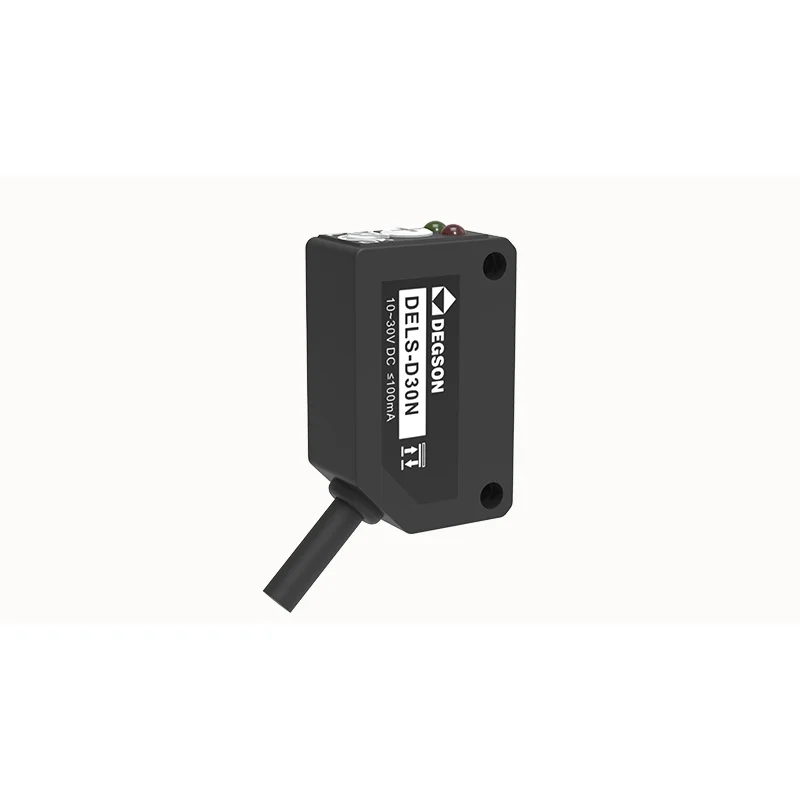

DELS-D30NThis part- Optical working principle: Diffuse reflection
- Detection distance: 10~300mm
- Light source: Red laser, 650nm, Class 2
- Indicator lights: Output function: Orange LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: NPN open collector
- Response time: 0.33ms
- Operating voltage: 10~30V DC±10%
- Consume current: ≤35mA
- Residual voltage: ≤2.0V (100mA)
DELS-D30PThis part- Optical working principle: Diffuse reflection
- Detection distance: 10~300mm
- Light source: Red laser, 650nm, Class 2
- Indicator lights: Output function: Orange LED; Operating status: Green LED
- Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
- Output mode: PNP open collector
- Response time: 0.33ms
- Operating voltage: 10~30V DC±10%
- Consume current: ≤35mA
- Residual voltage: ≤2.0V (100mA)
Capacitive proximity sensors
Every description in this list includes Capacitive proximity sensor, Output mode: NPN, Consume current: ≤10mA.
DCE15-13NCThis part- Installation method: Cable ties are used to secure the liquid being tested to the casing
- Detection distance: The sensing distance is adjustable (depending on the liquid being measured)
- Indicator lights: Output indicator: Red LED
- Switch mode: Normally closed
- Operating voltage: 10~30V
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC)

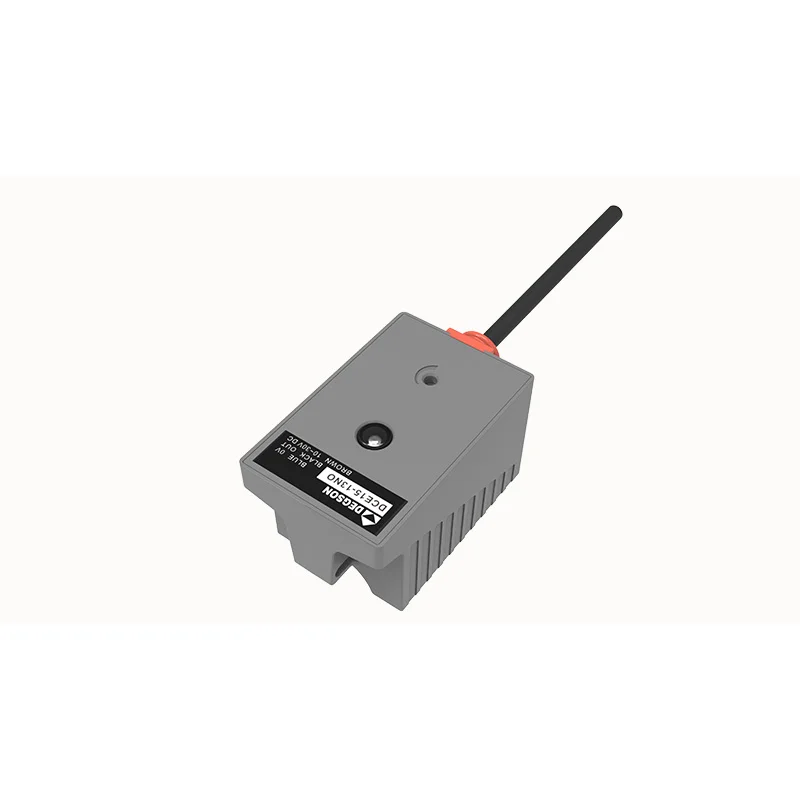

DCE15-13NOThis part- Installation method: Cable ties are used to secure the liquid being tested to the casing
- Detection distance: The sensing distance is adjustable (depending on the liquid being measured)
- Indicator lights: Output indicator: Red LED
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Residual voltage: ≤1.5V
- Load current: 150mA
- Insulation resistance: ≥50MΩ (500VDC)
DCE30-26NCThis part- Installation method: Cable ties are used to secure the liquid being tested to the casing
- Detection distance: The sensing distance is adjustable (depending on the liquid being measured)
- Indicator lights: Output indicator: Red LED
- Switch mode: Normally closed
- Operating voltage: 10~30V
- Residual voltage: ≤1.5V
- Load current: 100mA
- Insulation resistance: ≥50MΩ (500VDC)

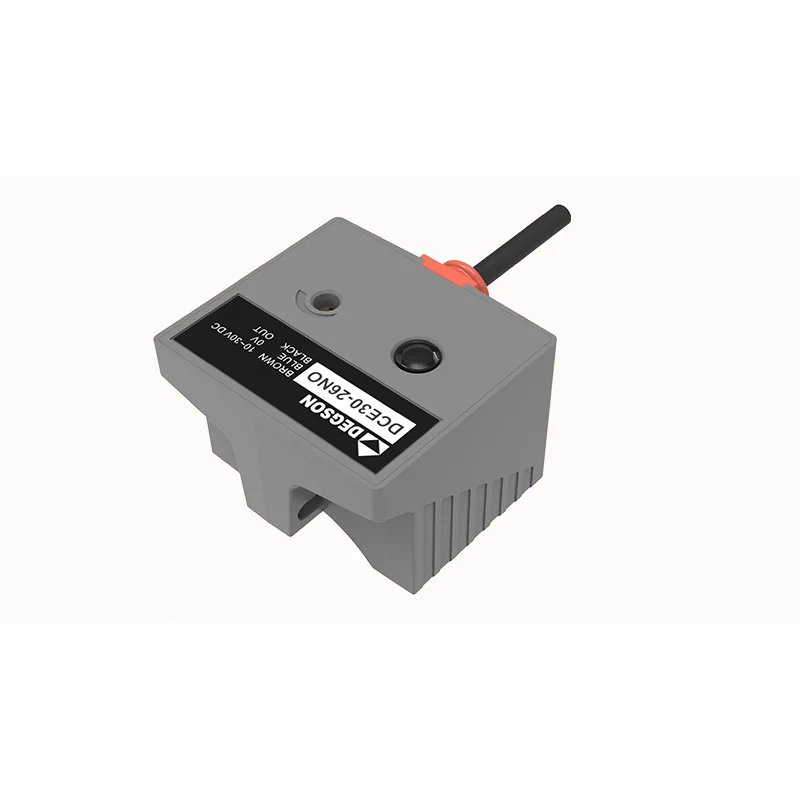

DCE30-26NOThis part- Installation method: Cable ties are used to secure the liquid being tested to the casing
- Detection distance: The sensing distance is adjustable (depending on the liquid being measured)
- Indicator lights: Output indicator: Red LED
- Switch mode: Normally open
- Operating voltage: 10~30V DC
- Residual voltage: ≤1.5V
- Load current: 100mA
- Insulation resistance: ≥50MΩ (500VDC)

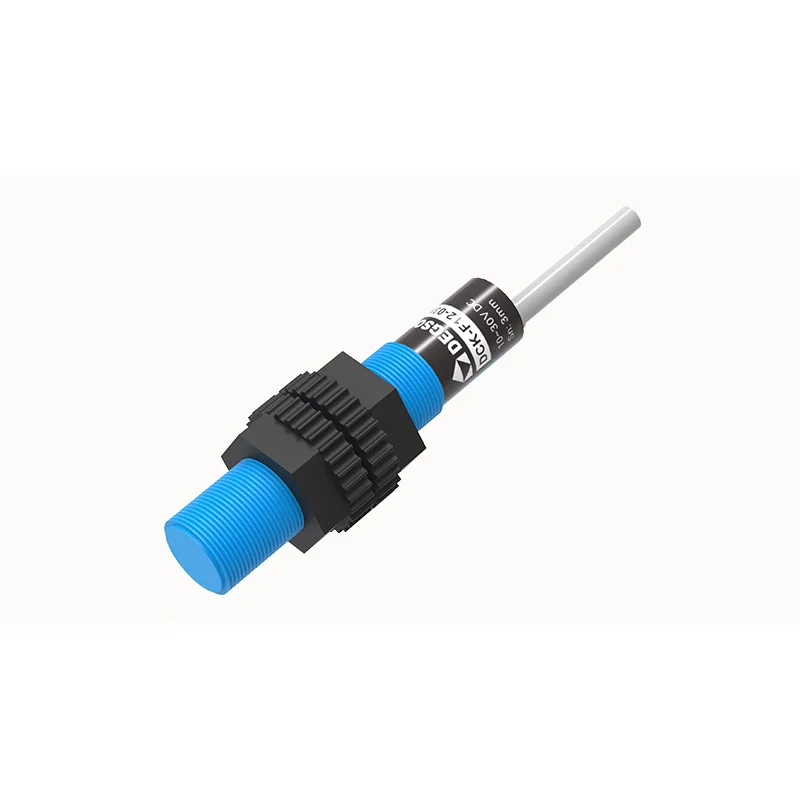

DCK-F12-03NCThis part- Installation method: Flush
- Detection distance: 3.0mm±10%
- Thread specifications: M12
- Indicator lights: Operating status: LED
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Residual voltage: ≤2.0V
- Load current: 150mA
DCK-F12-03NOThis part- Installation method: Flush
- Detection distance: 3.0mm±10%
- Thread specifications: M12
- Indicator lights: Operating status: LED
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Residual voltage: ≤2.0V
- Load current: 150mA
DCK-F18-08NCThis part- Installation method: Flush
- Detection distance: 8.0mm
- Thread specifications: M18
- Indicator lights: Operating status: LED
- Switch mode: Normally closed
- Operating voltage: 10~30V DC±10%
- Residual voltage: ≤2.0V
- Load current: 300mA

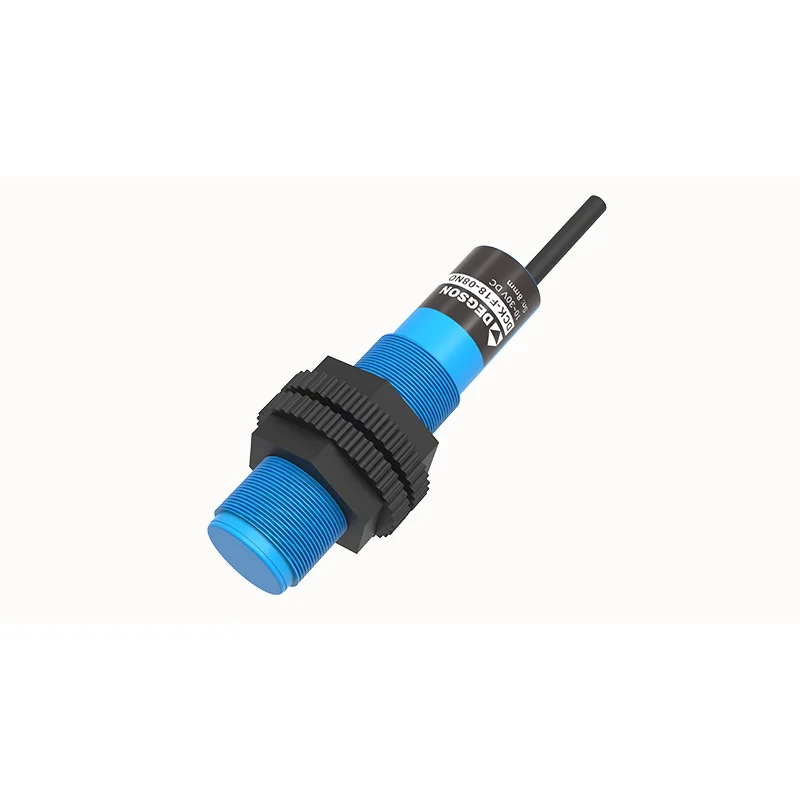

DCK-F18-08NOThis part- Installation method: Flush
- Detection distance: 8.0mm
- Thread specifications: M18
- Indicator lights: Operating status: LED
- Switch mode: Normally open
- Operating voltage: 10~30V DC±10%
- Residual voltage: ≤2.0V
- Load current: 300mA
Sensor test boxes and cables

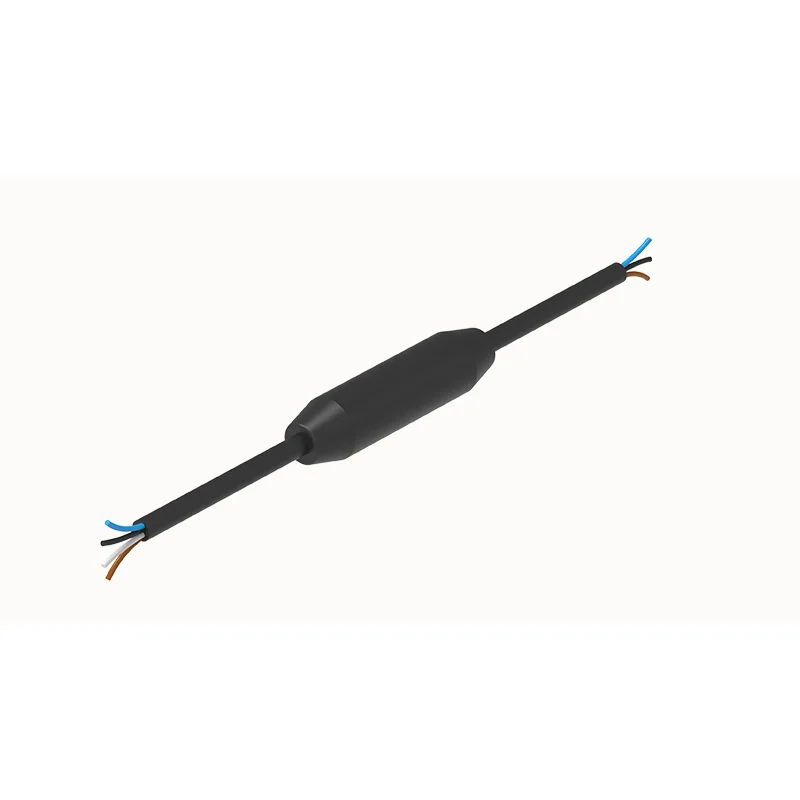

DAC-N2PDescription Sensor signal adapter cable (NPN to PNP)- Circuit protection: Polarity protection
- Load current: ≤150mA
- Operating temperature: -20℃~60℃
- Residual voltage: ≤1V
- Storage temperature: -40℃~85℃
- Switching frequency: ≤5KHz
- Input voltage: 8~30V
DAC-P2NDescription Sensor signal adapter cable (PNP to NPN)- Circuit protection: Polarity protection
- Load current: ≤150mA
- Operating temperature: -20℃~60℃
- Residual voltage: ≤1V
- Storage temperature: -40℃~85℃
- Switching frequency: ≤5KHz
- Input voltage: 8~30V

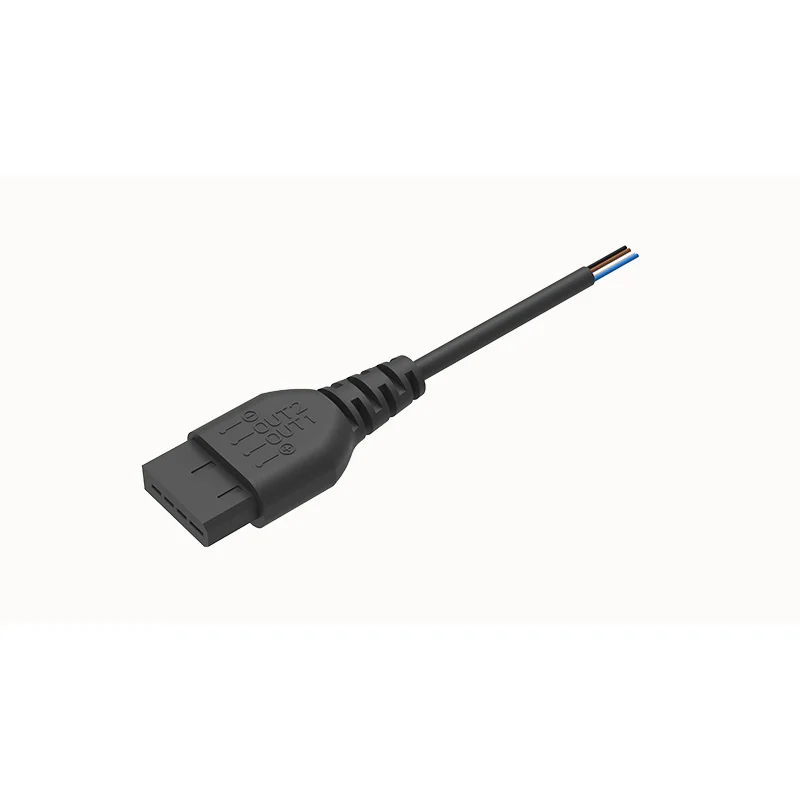

DME-1007Description Sensor cable- Order number: 30160000148
- Packaging unit: 20 STK
- Insertion force: Below 18N
- Pull-out force (cover holding force): 25N
- Contact point: Phosphor bronze

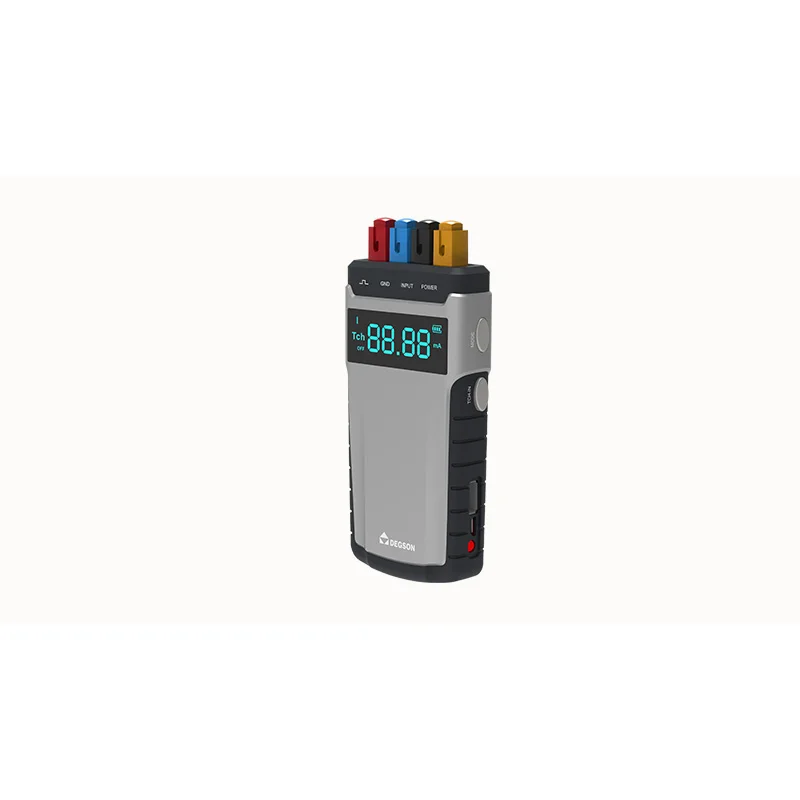

DWD-1Description Sensor test box- Detection type: NPN/PNP
- Battery capacity: 4000mAH
- Charging time: 9h
- Output voltage 1: 19V~24V Brown Output Terminal
- Output voltage 2: 4.8V~5V USB output terminal
- Output current 1: ≤160mA Brown Output Terminal
- Output current 2: ≤500mA USB output terminal
- Protection circuit: Power overcurrent protection
- Operating ambient temperature: -10~45℃
- Other functions: Sleep function, mute function, flashlight

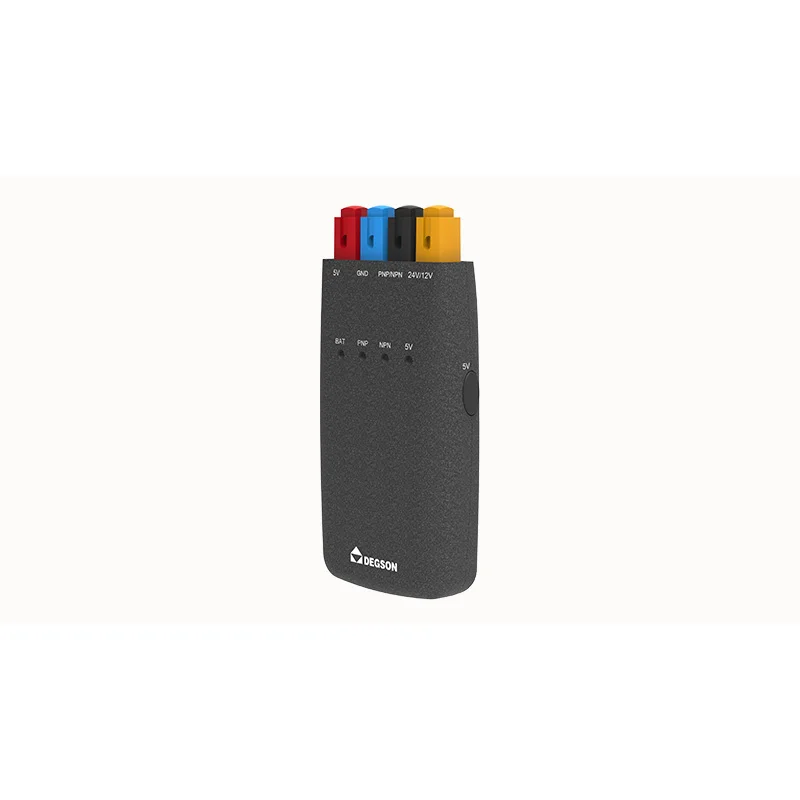

DWT-2Description Sensor test box- Detection type: NPN/PNP
- Battery capacity: 2500mAH
- Charging time: 2.5h
- Output voltage 1: Select 5V output from 4.5~5.5V
- Output voltage 2: Select 12V output from 11~13V
- Output voltage 3: Select 24V output from 22~26V
- Output current 1: ≤0.5A 5V output
- Output current 2: ≤0.55A 12V output
- Output current 3: ≤0.25A 24V output
- Protection circuit: Output short circuit protection
Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
