Degson Photoelectric sensors

20 Degson part numbers. Copy the one you need or request a quote.

Request a quote

Every description in this list includes Photoelectric sensor.

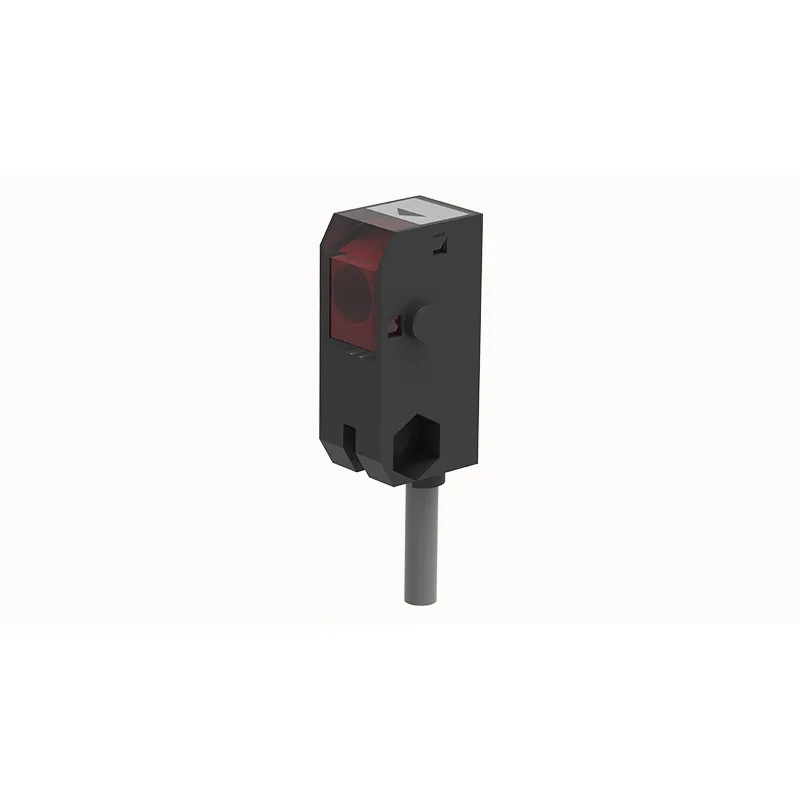

  • DPB-B15N-S
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection with background suppression
    • Detection distance: 2~150mm
    • Light source: Red LED 660nm (modulated)
    • Indicator lights: Work indicator light: Green; Action indicator light: Red
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: NPN open collector
    • Response time: ≤1ms
    • Switching frequency: \
    • Operating voltage: 10~30V DC
    • Consume current: ≤25mA
  • DPB-B15P-S
    Request a quoteView on GrossAutomation.com
    This part
    • Optical working principle: Diffuse reflection with background suppression
    • Detection distance: 2~150mm
    • Light source: Red LED 660nm (modulated)
    • Indicator lights: Work indicator light: Green; Action indicator light: Red
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: PNP open collector
    • Response time: ≤1ms
    • Switching frequency: \
    • Operating voltage: 10~30V DC
    • Consume current: ≤25mA

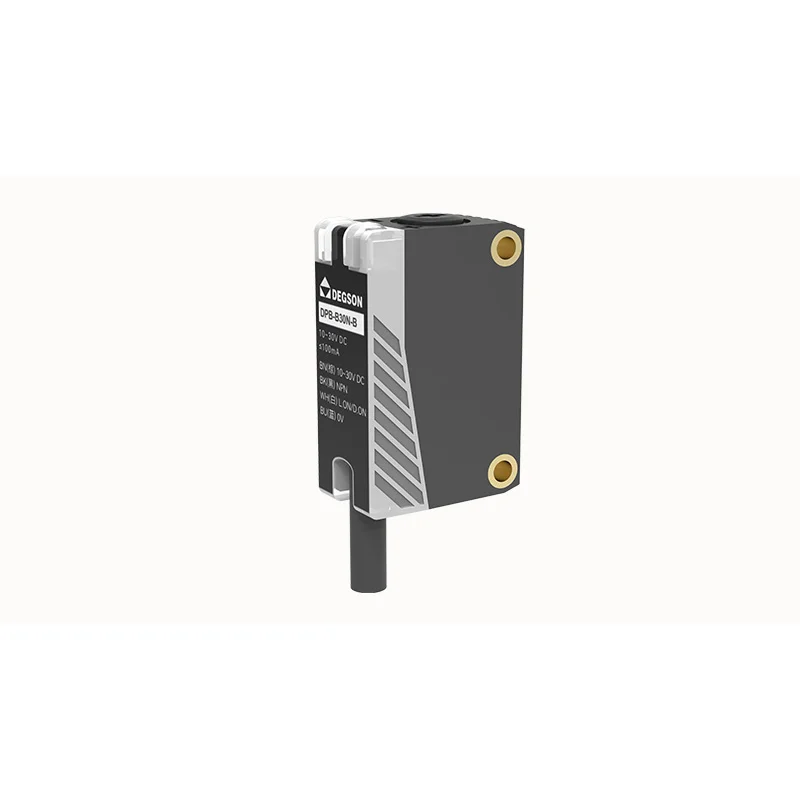

  • DPB-B30N-B
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection with background suppression
    • Detection distance: White paper: 2~300mm
    • Light source: Blue LED 465nm (modulated)
    • Indicator lights: Work indicator light: Green; Action indicator light: Red
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: NPN open collector
    • Response time: ≤1.5ms
    • Switching frequency: \
    • Operating voltage: 10~30V DC
    • Consume current: ≤20mA

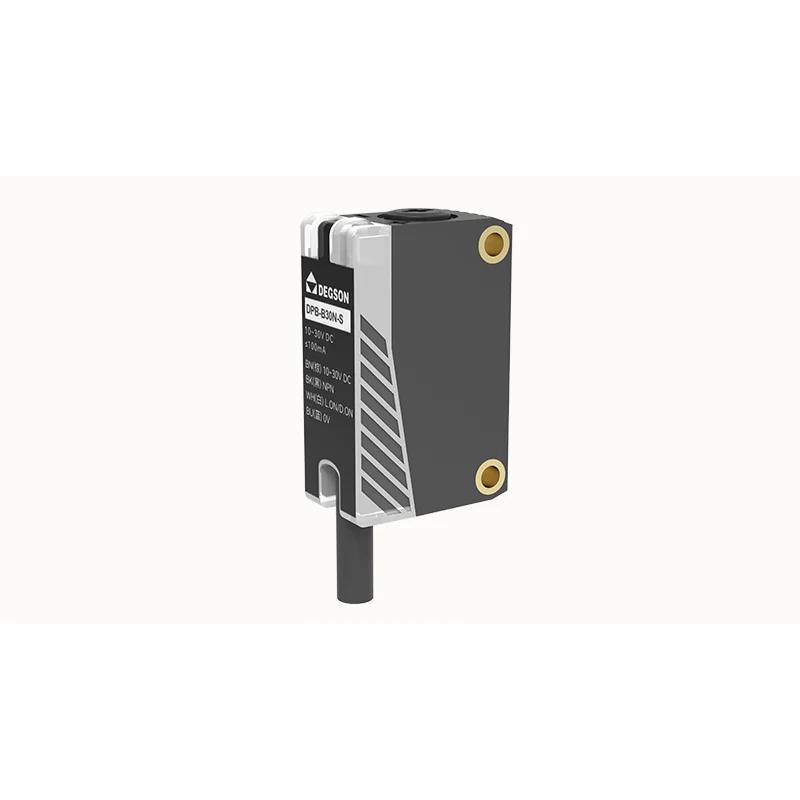

  • DPB-B30N-S
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection with background suppression
    • Detection distance: 2~300mm (white matte paper)
    • Light source: Red LED 660nm (modulated)
    • Indicator lights: Work indicator light: Green; Action indicator light: Red
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: NPN open collector
    • Response time: ≤1ms
    • Switching frequency: \
    • Operating voltage: 10~30V DC
    • Consume current: ≤20mA
  • DPB-B30P-B
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection with background suppression
    • Detection distance: White paper: 2~300mm
    • Light source: Blue LED 465nm (modulated)
    • Indicator lights: Work indicator light: Green; Action indicator light: Red
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: PNP open collector
    • Response time: ≤1.5ms
    • Switching frequency: \
    • Operating voltage: 10~30V DC
    • Consume current: ≤20mA
  • DPB-B30P-S
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection with background suppression
    • Detection distance: 2~300mm (white matte paper)
    • Light source: Red LED 660nm (modulated)
    • Indicator lights: Work indicator light: Green; Action indicator light: Red
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: PNP open collector
    • Response time: ≤1ms
    • Switching frequency: \
    • Operating voltage: 10~30V DC
    • Consume current: ≤20mA

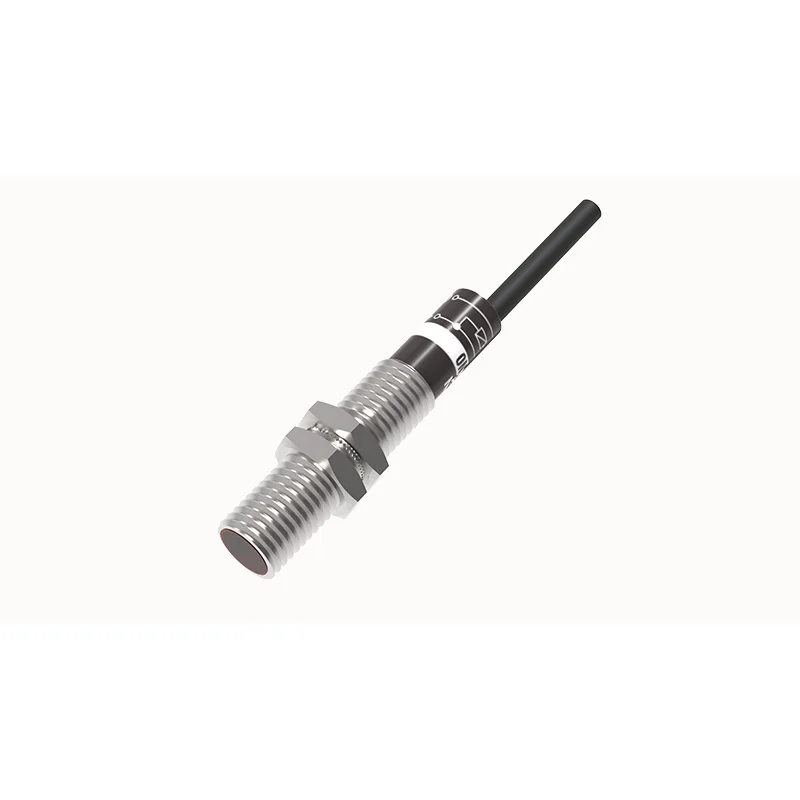

  • DPC08-D03NO
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: 30mm (white paper 30x30mm)
    • Light source: Infrared light 940nm
    • Switch mode: L.on (Entering the Light Action)
    • Output mode: NPN open collector
    • Response time: 3ms
    • Switching frequency: 0.67kHz
    • Operating voltage: 12~24V DC±10%
    • Consume current: ≤30mA
    • Residual voltage: ≤2.0V (50mA)
  • DPC08-D03PO
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: 30mm (white paper 30x30mm)
    • Light source: Infrared light 940nm
    • Switch mode: L.on (Entering the Light Action)
    • Output mode: PNP open collector
    • Response time: 3ms
    • Switching frequency: 0.67kHz
    • Operating voltage: 12~24V DC±10%
    • Consume current: ≤30mA
    • Residual voltage: ≤2.0V (50mA)

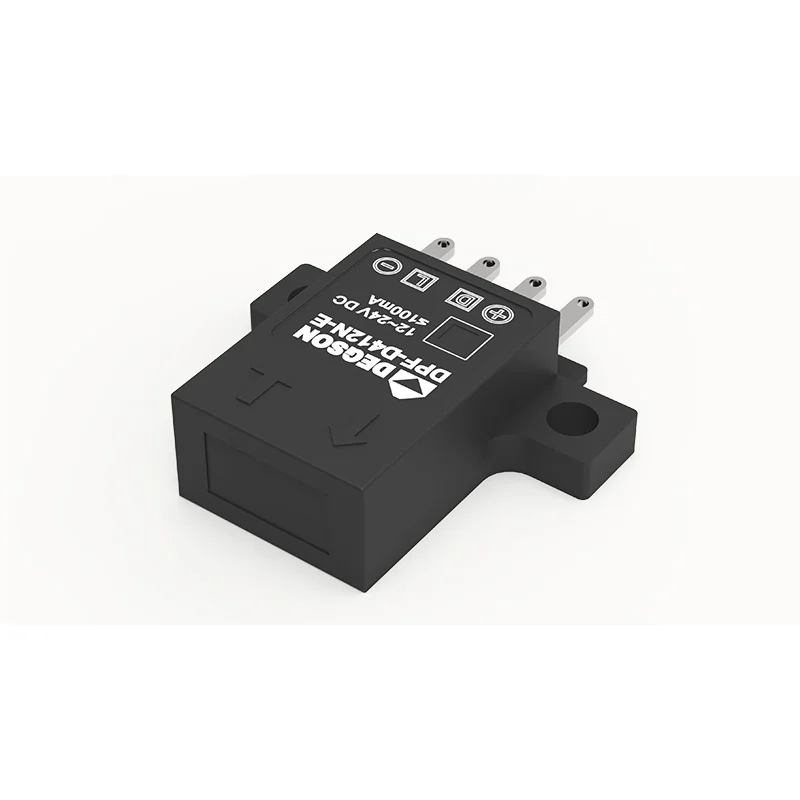

  • DPF-D412N-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: 40mm
    • Light source: Infrared light 850nm
    • Indicator lights: Operating status: Green LED
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: NPN open collector
    • Response time: ≤1ms
    • Switching frequency: 2KHz
    • Operating voltage: 12~24V DC
    • Consume current: ≤25mA
  • DPF-D412P-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: 40mm
    • Light source: Infrared light 850nm
    • Indicator lights: Operating status: Green LED
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: PNP open collector
    • Response time: ≤1ms
    • Switching frequency: 2KHz
    • Operating voltage: 12~24V DC
    • Consume current: ≤25mA
  • DPSJ-T150NO
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Through-beam
    • Detection distance: 1500mm (fixed)
    • Light source: Infrared light 850nm (modulation)
    • Indicator lights: Output function: Yellow LED (receiver); Operation status: Green LED (transmitter)
    • Switch mode: D.on (the action of blocking out light)
    • Output mode: NPN open collector
    • Response time: 3.3ms
    • Switching frequency: 0.06 kHz
    • Operating voltage: 12~24V DC
    • Consume current: Transmitter ≤20mA; Receiver ≤20mA
  • DPSJ-T150PO
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Through-beam
    • Detection distance: 1500mm (fixed)
    • Light source: Infrared light 850nm (modulation)
    • Indicator lights: Output function: Yellow LED (receiver); Operation status: Green LED (transmitter)
    • Switch mode: D.on (the action of blocking out light)
    • Output mode: PNP open collector
    • Response time: 3.3ms
    • Switching frequency: 0.06 kHz
    • Operating voltage: 12~24V DC
    • Consume current: Transmitter ≤20mA; Receiver ≤20mA

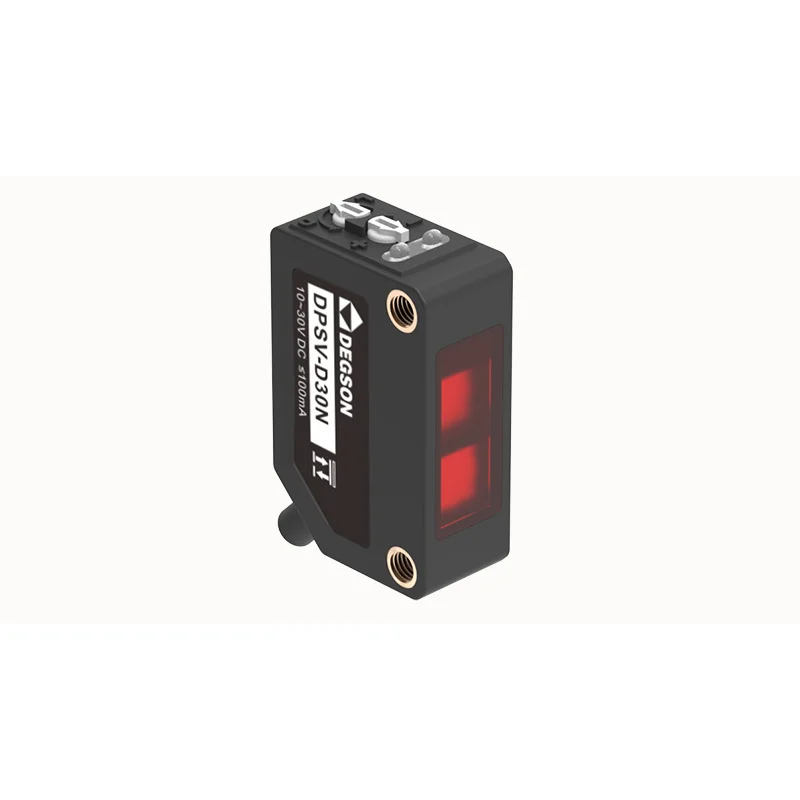

  • DPSV-D30N
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: 10~300mm
    • Light source: Infrared light 940nm (modulated)
    • Indicator lights: Output function: Red LED; Operating status: Green LED
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: NPN open collector
    • Response time: 1ms
    • Switching frequency: 2KHz
    • Operating voltage: 10~30V DC
    • Consume current: ≤25mA
  • DPSV-D30P
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: 10~300mm
    • Light source: Infrared light 940nm (modulated)
    • Indicator lights: Output function: Red LED; Operating status: Green LED
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: PNP open collector
    • Response time: 1ms
    • Switching frequency: 2KHz
    • Operating voltage: 10~30V DC
    • Consume current: ≤25mA

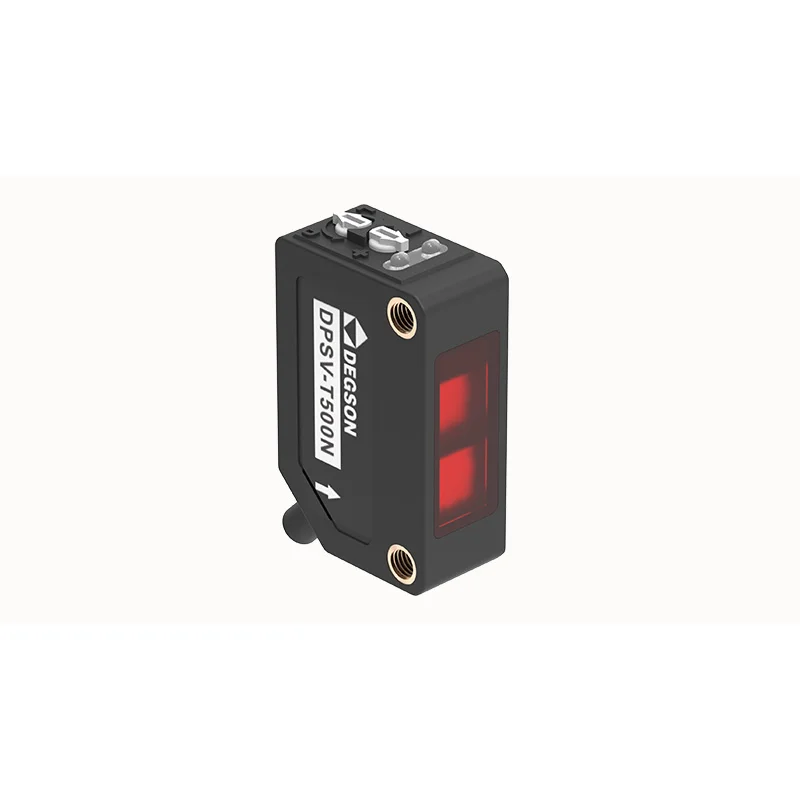

  • DPSV-T500N
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Through-beam
    • Detection distance: 5000mm
    • Light source: Infrared light 940nm (modulated)
    • Indicator lights: Output function: Red LED; Operating status: Green LED
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: NPN open collector
    • Response time: ≤5ms
    • Switching frequency: 0.4 kHz
    • Operating voltage: 10~30V DC
    • Consume current: ≤20mA
  • DPSV-T500P
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Through-beam
    • Detection distance: 5000mm
    • Light source: Infrared light 940nm (modulated)
    • Indicator lights: Output function: Red LED; Operating status: Green LED
    • Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched
    • Output mode: PNP open collector
    • Response time: ≤5ms
    • Switching frequency: 0.4 kHz
    • Operating voltage: 10~30V DC
    • Consume current: ≤20mA

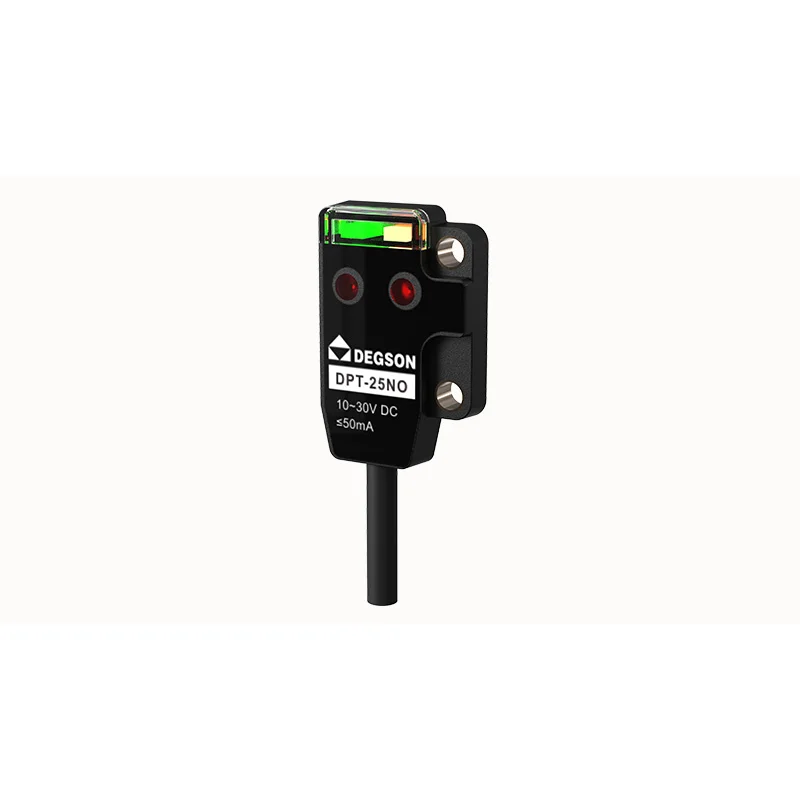

  • DPT-25NO
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: White paper: 1~25mm
    • Light source: Infrared LED 950nm (modulated)
    • Indicator lights: Output indicator: Orange; Light source indicator: Green
    • Switch mode: D.on (the action of blocking out light)
    • Output mode: NPN open collector
    • Response time: ≤2ms
    • Switching frequency: 250Hz
    • Operating voltage: 10~30V DC±10%
    • Consume current: ≤20mA
  • DPT-25PO
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Diffuse reflection
    • Detection distance: White paper: 1~25mm
    • Light source: Infrared LED 950nm (modulated)
    • Indicator lights: Output indicator: Orange; Light source indicator: Green
    • Switch mode: D.on (the action of blocking out light)
    • Output mode: PNP open collector
    • Response time: ≤2ms
    • Switching frequency: 250Hz
    • Operating voltage: 10~30V DC±10%
    • Consume current: ≤20mA

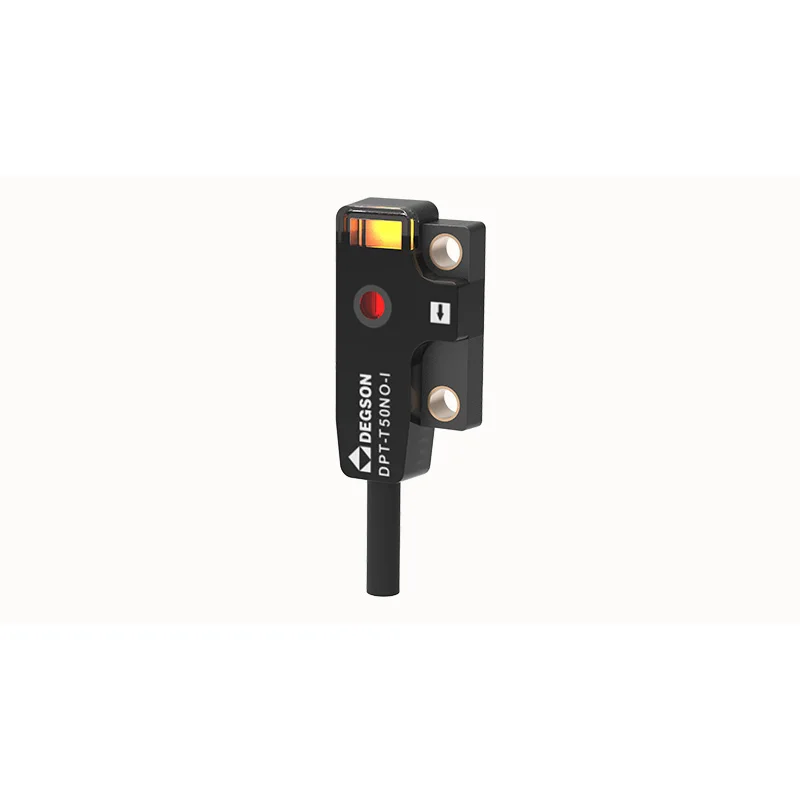

  • DPT-T50NO-I
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Through-beam
    • Detection distance: 0-500mm
    • Light source: Infrared LED 945nm (modulated)
    • Indicator lights: Output indicator: Orange; Light source indicator: Green
    • Switch mode: D.on (the action of blocking out light)
    • Output mode: NPN open collector
    • Response time: ≤1ms
    • Switching frequency: 800Hz
    • Operating voltage: 10~30V DC±10%
    • Consume current: ≤20mA
  • DPT-T50PO-I
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Optical working principle: Through-beam
    • Detection distance: 0-500mm
    • Light source: Infrared LED 945nm (modulated)
    • Indicator lights: Output indicator: Orange; Light source indicator: Green
    • Switch mode: D.on (the action of blocking out light)
    • Output mode: PNP open collector
    • Response time: ≤1ms
    • Switching frequency: 800Hz
    • Operating voltage: 10~30V DC±10%
    • Consume current: ≤20mA

Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
