Degson Slot (fork) photoelectric sensors

33 Degson part numbers. Copy the one you need or request a quote.

Request a quote

Every description in this list includes Slot (fork) photoelectric sensor, Optical working principle: Through-beam, Switch mode: L.on (light-inducing action) / D.on (light-blocking action) can be switched.

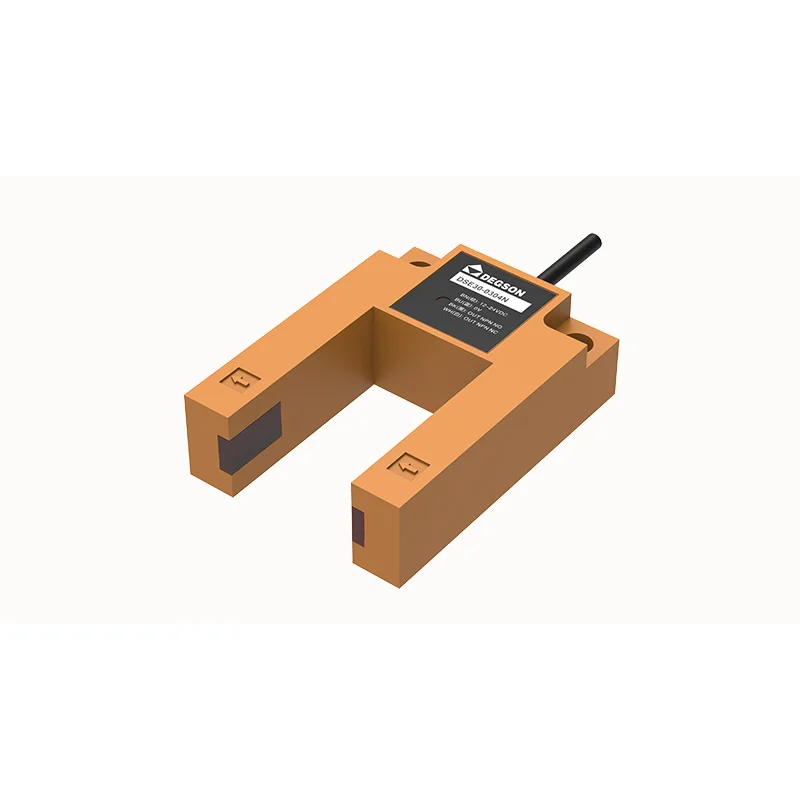

  • DSE30-0304N
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 30mm
    • Light source: Infrared LED, 940nm (modulated)
    • Indicator lights: Output function: Yellow LED
    • Output mode: NPN open collector
    • Response time: 1ms
    • Switching frequency: 2KHz
    • Operating voltage: 12~24V DC±10%
    • Consume current: ≤15mA
  • DSF-202NA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.33ms
    • Switching frequency: 6.006 kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSF-202PA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06 kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSF-302NA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DSF-302NA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DSF-302PA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DSF-302PA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DSK-206NA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSK-206PA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSK-306NA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSK-306NA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSK-306PA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSK-306PA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSL-205NA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSL-205PA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSL-305NA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSL-305NA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSL-305PA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSL-305PA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSR-204NA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSR-204PA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSR-304NA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DSR-304PA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DST-303NA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DST-303NA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DST-303PA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DST-303PA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: <20mA
  • DSU-201NA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06 kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSU-201PA-E
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.33ms
    • Switching frequency: 6.06 kHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤16mA
  • DSY-307NA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSY-307NA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: NPN open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSY-307PA-SC
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: 0.3ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA
  • DSY-307PA-SE
    Request a quoteView on GrossAutomation.comDrawing
    This part
    • Detection distance: 5.0mm
    • Light source: Infrared LED, 940nm
    • Indicator lights: Red LED
    • Output mode: PNP open collector
    • Response time: ≤0.33ms
    • Switching frequency: 3KHz
    • Operating voltage: 5~24V DC
    • Consume current: ≤20mA

Descriptions come from our catalog. Check the datasheet, or ask us, before you order.
